MARTIN XD12 COMPACT HIGH-OUTPUT TWO-WAY SYSTEM
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 05, 2016 - Viewed 60 times

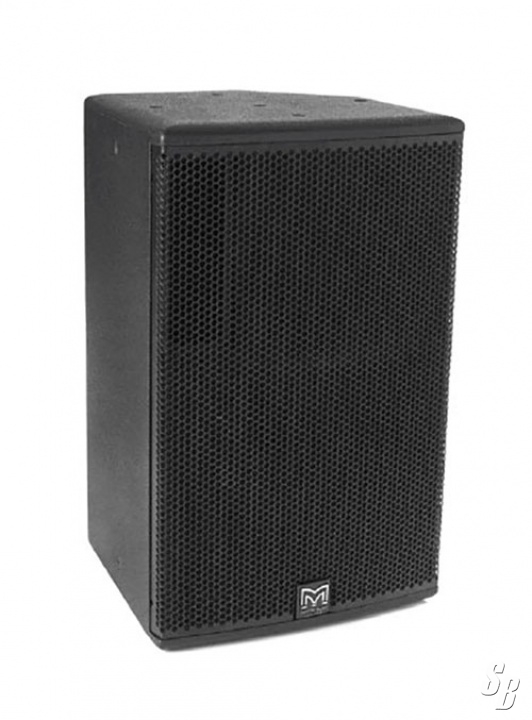

XD12 COMPACT HIGH-OUTPUT TWO-WAY SYSTEM

THE XD12 IS A HIGH-POWER, HIGH-OUTPUT, TWO-WAY SYSTEM EQUALLY SUITED TO PORTABLE LIVE SOUND APPLICATIONS, THEATRE AND FIXED INSTALLATIONS. IT FEATURES A HIGH-SPECIFICATION 12” (300MM) LOW FREQUENCY DRIVE UNIT AND A 1” (25MM) EXIT COMPRESSION DRIVER MOUNTED ON A USER-ROTATABLE 80° X 50° CONSTANT DIRECTIVITY HORN.

THE 12” (300MM) LF DRIVER HAS A LIGHTWEIGHT 3” (75MM) VOICE COIL AND FLUX DEMODULATION RINGS TO REDUCE DISTORTION AT HIGH EXCURSIONS. ITS NEODYMIUM MOTOR SYSTEM COMBINES HIGH SENSITIVITY WITH LOW WEIGHT AND ADVANCED COOLING REDUCES POWER COMPRESSION TO NEGLIGIBLE LEVELS. THE 1” (25MM) EXIT HF DRIVER HAS A 1.7” (44MM) TITANIUM DOME AND ULTRA-HIGH FLUX NEODYMIUM MOTOR SYSTEM FOR MAXIMUM EFFICIENCY, PLUS A COPPER CAP TO EXTEND THE HF RESPONSE.

THE INTERNAL HF/LF CROSSOVER IS SWITCHABLE BETWEEN PASSIVE OR BI-AMP OPERATION, DEPENDING ON USER REQUIREMENTS.

THE XD12 IS THE PERFECT SOLUTION FOR HIGH-POWER APPLICATIONS WHERE FLEXIBILITY, EASE OF INSTALLATION AND SPEED OF DEPLOYMENT ARE IMPORTANT FACTORS. THE VERSATILE, MULTI-ANGLE ENCLOSURE AND ROTATABLE HORN FACILITATE EITHER HORIZONTAL OR VERTICAL ORIENTATION, AND COMPREHENSIVE BRACKETS SUPPORT THE FULL VARIETY OF MOUNTING OPTIONS – INCLUDING SURFACE, CEILING AND POLE MOUNT. INTEGRAL M8 INSERTS FOR SIMPLE EYEBOLT SUSPENSION INCREASE THE OPTIONS EVEN FURTHER. IN ITS HORIZONTAL CONFIGURATION, THE XD12 IS ALSO IDEAL AS A COMPACT, HIGH-OUTPUT STAGE MONITOR.

WHEN USED IN BI-AMP MODE, OR WITH A SUBWOOFER SUCH AS THE WAVEFRONT WS18X OR WS218X, IT IS RECOMMENDED THAT THE XD12 IS USED WITH THE MARTIN AUDIO DX1.5 OR DX2 CONTROLLER. WHEN OPERATED AS A PASSIVE SYSTEM, IT MAY BE USED WITHOUT A CONTROLLER, BUT WILL BENEFIT FROM THE DX1.5 OR DX2'S EQ AND LIMITER FUNCTIONS.

MANUFACTURERS A STOCK

BRAND NEW WITH FULL WARRANTY
