MACKIE'S FUSSION 1800SA AND 1800S SUBWOOFERS
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 27, 2006 - Viewed 345 times

MACKIE FUSSION 1800SA AND 1800S (?) (S#: TBD) SUPERB (8-9)

MACKIE'S FUSSION 1800SA/1800S IS A HIGH-OUTPUT, ACTIVE SUBWOOFER SYSTEM FEATURING HIGH-PRECISION 18-INCH TRANSDUCERS COMBINED WITH APPLICATION-SPECIFIC AMPLIFIER TECHNOLOGY. THE SYSTEM IS COMPOSED OF TWO SUBWOOFER CABINETS: THE 1800SA, WHICH CONTAINS A SINGLE 18-INCH WOOFER AND THE ACTIVE ELECTRONICS, AND THE 1800S, A SINGLE 18-INCH WOOFER CABINET THAT FUNCTIONS AS A SLAVE.

ACTIVE, HIGH-OUTPUT DUAL 18" SUBWOOFER SYSTEM
2500W HIGH-EFFICIENCY, HIGH-CURRENT AMPLIFIER
HIGH OUTPUT, 139DB PEAK
TWO 18" HIGH-PRECISION TRANSDUCERS
4" HIGH-TEMPERATURE, INSIDE/OUTSIDE VOICE COILS
18MM BIRCH PLYWOOD CONSTRUCTION
FULLY INTEGRATES WITH ONBOARD ACOUSTIC MANAGEMENT CONTROL SYSTEM FOUND IN ALL FUSSION FULL-RANGE OR MID-HIGH SPEAKER SYSTEMS
INDIVIDUAL 18" CABINETS FACILITATE TRANSPORT AND SETUP

SEE PRODUCT PAGE HERE:
HTTP://WWW.MACKIE.COM/PRODUCTS/FUSSION1800/INDEX.HTML


FUSSION 1800SA/1800S SPECIFICATIONS
SYSTEM SPECIFICATIONS
FREQ. RANGE(-10DB): 38HZ - 160HZ
FREQ. RESPONSE (-3DB): 40HZ - 150HZ
RATED MAXIMUM SPL (LONG TERM): 136DB @ 1M (SYSTEM)
RATED MAXIMUM SPL (PEAK): 139DB @ 1M (SYSTEM)
RECOMMENDED CROSSOVER POINT: 85HZ

TRANSDUCERS
LOW-FREQUENCY: (2 EACH)
CONE DIAMETER 18" (457MM)
VOICE COIL DIAMETER 4" (100MM)
POWER HANDLING 800 WATTS RMS (LONG TERM)*
* FOOTNOTE : POWER HANDLING FOR TRANSDUCERS IS BASED ON AES LONG TERM POWER TESTING STANDARD CONDUCTED FOR 100 HOURS FULL POWER, FREE AIR.


AMPLIFIER
LOW-FREQUENCY:
RATED OUTPUT PER AES STANDARD @ LOW FREQUENCY DRIVER IMPEDANCE: 1250 WATTS CONTINUOUS AVERAGE POWER
2500 WATTS PEAK
TYPE: CLASS G HIGH-EFFICIENCY, HIGH CURRENT
COOLING: CONVECTION EXTRUSION

AUDIO INPUT / OUTPUT / CONTROLS
MAIN INPUT: 2 OHM IMPEDANCE, BALANCED
LEVEL OUTPUT (1800SA): EP4 FEMALE
SPEAKER LEVEL INPUT (1800S): EP4 MALE

LINE INPUT POWER
US 120V, 60HZ
RECOMMENDED AMPERAGE SERVICE: 12 AMPS
AC CONNECTOR: 3-PIN TWISTLOCK 250VAC, 20A MALE
EUROPE 230V, 50HZ
RECOMMENDED AMPERAGE SERVICE: 8 AMPS
AC CONNECTOR: 3-PIN IEC 250VAC, 16A MALE
CURRENT PROTECTION: YES, TRANSISTOR BASED


SAFETY FEATURES
(PROVIDED BY FUSSION FULL RANGE OR MID-HIGH SPEAKER SYSTEMS ONLY, NO ONBOARD CONTROLS IN 1800SA)

RMS LIMITING: MONITORING AND LIMITING OF CONTINUOUS RMS OUTPUT OF AMPLIFIERS
THERMAL: MONITORING OF THERMAL CONDITION OF POWER SUPPLY AND AMPLIFIERS. HIGH TEMPERATURE CONDITION ENGAGES INPUT STAGE SHUT DOWN AND AUTO RESET FUNCTION.

PHYSICAL
ENCLOSURE: RECTANGULAR; 18MM MULTI-LAYERED BIRCH
HANDLES: 4 EA. ALUMINUM/RUBBER GRIPS
COLOR: BLACK, SPLATTER PAINT
GRILLE: CUSTOM PERFORATED OVAL STEEL GRILLE WITH ANTI-CORROSIVE TREATMENT
DIMENSIONS
HEIGHT 32.90" (836 MM)
FRONT WIDTH 23.60" (600 MM)
DEPTH 23.60" (600 MM)
NET WEIGHT: FUSSION 1800SA 145.2 LBS. (66 KG)
FUSSION 1800S 105.6 LBS. (48 KG)


COMES WITH CUSTOM 30 FOOT MASTER TO SLAVE CABLE, CUSTOM POWER CORD WITH TWIST LOCK TO 120V OUTLET CABLE, AND CUSTOM SOFT TUKI COVERS.

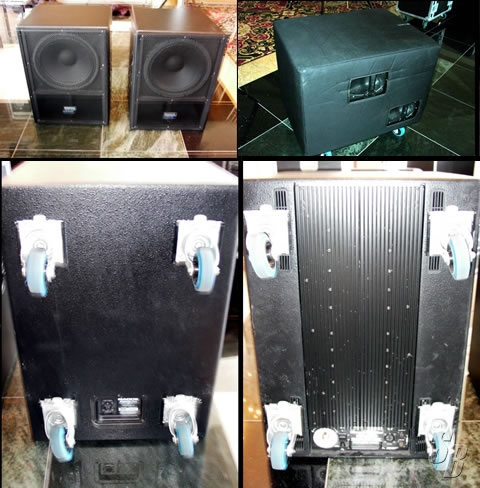

I HAVE INSTALLED HEAVY DUTY, REMOVABLE WHEELS TO MAKE TRANSPORT EASIER.

I AM A MOBILE DJ WHO USED THEM FOR WEDDINGS AND PRIVATE PARTIES. THEY ARE IN PERFECT WORKING CONDITION.

THEY HAVE A FEW MINOR SCRATCHES ON THEM HOWEVER I HAVE ALWAYS KEPT EXCELLENT CASE OF MY EQUIPMENT.

THIS UNIT WAS NEVER TOURED
