JBL CONTROL 19CST (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Listing last update on February 28, 2013 - Viewed 41 times

JBL CONTROL 19CST (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)

FEATURES: IN-CEILING SUBWOOFER

FREQUENCY RANGE : 42 HZ - 200 HZ
POWER CAPACITY : 200 W CONTINUOUS
PROGRAM POWER
TRANSFORMER TAPS : 70 V: 75 W, 30 W, 15 W & 7.5 W
100 V: 75 W, 30 W, & 15 W
NOMINAL COVERAGE ANGLE : 180° CONICAL COVERAGE
RATED MAXIMUM SPL : 115 DB @ 1 M (3.3 FT) IN CEILING NEAR CORNER (
NOMINAL IMPEDANCE : 8 OHMS
LOW FREQUENCY : 200 MM (8.0 IN) POLYPROPELENE CONE. 38 MM (1.5 IN) COIL ON ALUMINUM FORMER
ENCLOSURE MATERIAL : BACKCAN: FORMED STEEL BAFFLE/RIM: MEDIUM IMPACT POLYSTYRENE, FIRE RATED UL94V-0
TERMINATIONS : REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS. 2 INPUT TERMINALS AND 2 LOOP-THRU OUTPUT TERMINALS. MAX. WIRE SIZE 12 AWG (2.5 MM2)
SAFETY AGENCY RATING : IN ACCORDANCE WITH IEC60849 / EN60849. SUITABLE FOR USE IN AIR HANDLING SPACES, PER U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
OUTSIDE DIMENSIONS (H X DIA) : 345 X 345 MM (13.6 X 13.6 IN) 318 MM (12.5 IN) FRONT OF CEILING TILE TO BACK OF BACKCAN
CUTOUT SIZE (H X W) : 305 MM (12.0 IN)
NET WEIGHT (EA) : 6.3 KG (14 LB)
SHIPPING WEIGHT (PAIR) : 14.3 KG (32 LB)
INCLUDED ACCESSORIES : C-SHAPED SUPPORT BACKING PLATE 2 TILE SUPPORT RAILS (FITS BOTH 2 X 4 FT OR 600 X 1200 MM TILES) CUTOUT TEMPLATE PAINT SHIELD REMOVABLE LOCKING WIRING CONNECTOR

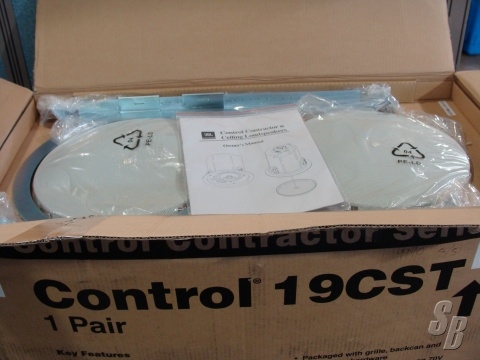

EXTRAS: NEW IN PACKAGE

MODIFICATIONS: NEW - NO MODIFICATIONS

HISTORY: NEW!

COMMENTS: NEW!

THIS UNIT WAS NEVER TOURED
