ID # 97671    CURRENT CATEGORY - STAGE/ROOF/TRUSSING

For Sale: TOMCAT 46 X 43 ROOF SYSTEM, COMPLETE, TURNKEY
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 21, 2017 - Viewed 550 times

TOMCAT 46 X 43 ROOF SYSTEM, COMPLETE, TURNKEY

CM LODESTAR, MOTION LABS, STAGEMAKER, TOMCAT 46 X 43 (YOM: 2011) (S#: TBD) SUPERB (8-9) FEATURES:

TOMCAT 46 X 43 ROOF SYSTEM.  PURCHASED IN JULY OF 2011.  THIS ROOF IS IN EXCELLENT CONDITION.  INCLUDES THE FOLLOWING ITEMS AND THEIR NEW COST:

  • TOMCAT 46 X 43 ROOF.  INCLUDES TOWERS UPGRADED TO MK2. ALSO INCLUDES 4 EXTRA CORNER BLOCKS TO CONNECT 24" X 12" SPIGOTED TRUSS TO MAKE A SELF CLIMBING GRID.  CURRENT TOMCAT PRICE IS $185,000.00 WITH STANDARD TOWERS.  BECAUSE OF THE UPGRADED TOWERS AND ADDITIONAL CORNER BLOCKS THE NEW PRICE INCREASES BY NEARLY TEN THOUSAND.
  • 6 CM 1 TON MODEL L MOTORS IN CASES WITH 80' LIFT OR 8 STAGEMAKER SR10 1 TON MOTORS IN CASES WITH 80' LIFT, YOUR CHOICE.  CURRENT PRICE FROM TOMCAT FOR 6 CM MODEL L WITH CASES IS $20,265.54
  • MOTION LABS 12 WAY MOTOR CONTROLLER WITH SOCA 7 PIN CABLES.  $4882.00
  • 1998 UTILITY 53' VAN SEMI TRAILER.  $5000.00 (USED TRAILER PRICE)
  • TOTAL REPLACEMENT COST FOR THE ABOVE:  NEARLY $225,000.

ALL MOTORS WILL HAVE CURRENT ANNUAL INSPECTION COMPLETED.  SEMI TRAILER INCLUDES ANNUAL INSPECTION FOR LOWER 48.  PRICE INCLUDES 1 DAY OF TRAINING AT YOUR FLAT AND LEVEL SITE IN THE CONTINENTAL US.  TRAINING REQUIRES 14 COMPETENT LABORERS AND HOTEL AND MEALS FOR TRAINER(S).  SEMI TRAILER DELIVERED IN CONTINENTAL UNITED STATES FOR $1.00 PER MILE.

FROM TOMCAT

TECHNICAL INFORMATION

  • ROOF GRID WILL SUPPORT 16,000 LBS (7,257 KG)
  • ROOF COVER PROVIDED
  • ENTIRE SYSTEM WILL PACK INTO A 24 FT TRUCK
  • ROOF LIFTS WITH FOUR CHAIN HOISTS
  • GUY PACKAGE REQUIRED FOR OUTDOOR USE
  • DETAILED ENGINEERING INFORMATION AVAILABLE ON REQUEST

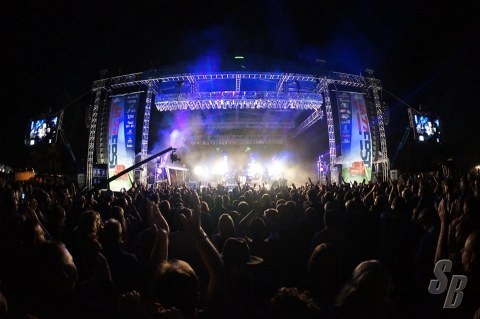

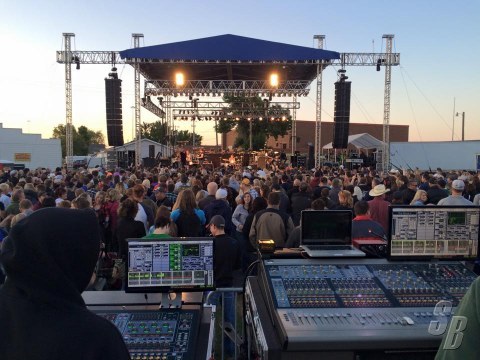

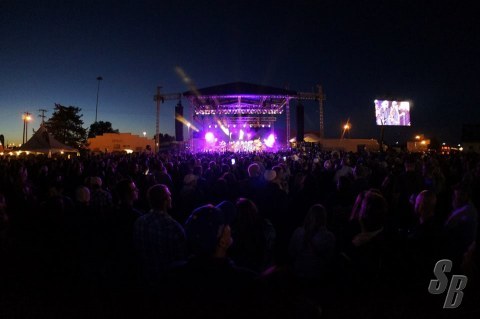

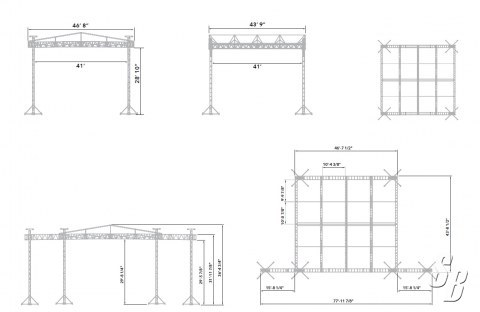

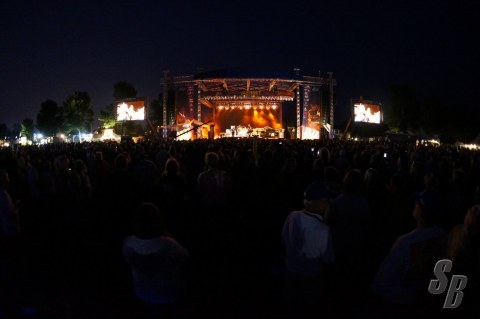

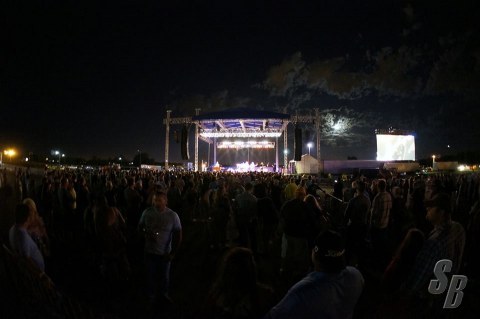

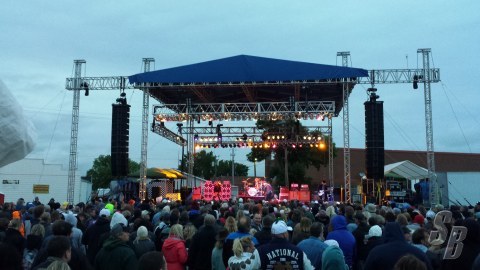

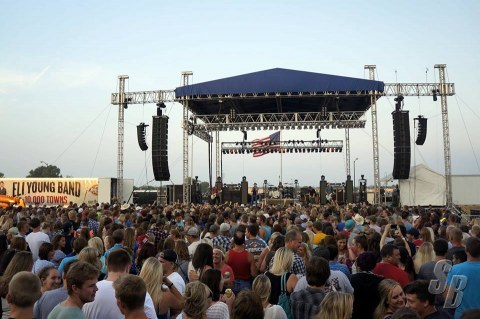

THIS ROOF DESIGN HAS LONG BEEN ONE OF THE MOST POPULAR EVER OFFERED BY TOMCAT DUE TO ITS LOADING CAPABILITIES AND ITS EASE OF TRANSPORT . BECAUSE OF ITS UNIQUE CONSTRUCTION, INCLUDING SLEEVES FOR THE 12” TOWER THAT ARE BUILT INTO THE PERIMETER GRID , THE SYSTEM BOASTS A TOTAL MAXIMUM UNIFORM DISTRIBUTED LOAD OF 16,000 POUNDS (7,258 KG). THE NAME OF THIS ROOF IS DERIVED FROM THE OUTSIDE DIMENSIONS OF THE GRID: 43 FT (13.11M) DEEP BY 46 FT (14.02 M) WIDE. IN ADDITION TO THE ABILITY TO ERECT THE SYSTEM IN JUST A FEW HOURS, THE ENTIRE SYSTEM EASILY FITS INTO A MID-SIZE TRUCK. THE SYSTEM IS SHOWN HERE WITHOUT THE GUY WIRES THAT ARE REQUIRED FOR OUTDOOR INSTALLATIONS.



EXTRAS:

INCLUDES:

ROOF

MOTORS / CABLE / MOTION LABS CONTROLLERS

53' AIR RIDE TRAILERS

MODIFICATIONS:

NONE

HISTORY:

USED FOR 3 EVENTS EACH YEAR.  OUT ABOUT 50 DAYS TOTAL.

COMMENTS:

NONE

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 97671
Listing Type:
Standard
Model: 46 X 43
Manufacturer: CM LODESTAR, MOTION LABS, STAGEMAKER, TOMCAT
Condition: SUPERB (8-9)
Shipping Info: 9999.99 lbs.,
Seller's Location: SD, USA
Updated: April 21, 2017
M.S.R.P.: $225,000.00
Offered at: $140,000.00
