YAMAHA PM1D (YOM: ?) (S#: HL01009) SUPERB (8-9)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on October 10, 2013 - Viewed 123 times

YAMAHA PM1D (YOM: ?) (S#: HL01009) SUPERB (8-9)

FEATURES: INCLUDES:

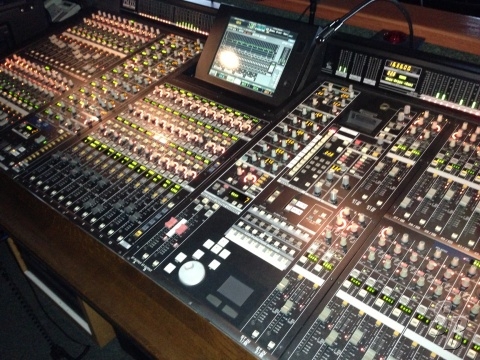

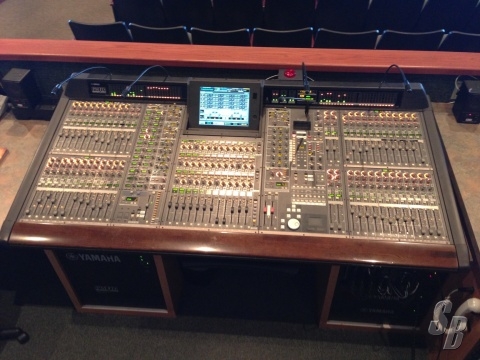

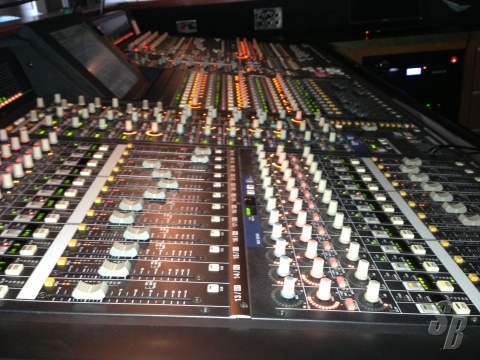

ONE CS-1D SURFACE
96 MONO/8 STEREO INS. 48 MIXES, 24 MATRIX & 2 STEREO (MAIN) OUTS.
SEE I/O CARDS BELOW FOR MORE INFORMATION.
VERSION 2 SOFTWARE ALL AROUND.
NEW (JULY 2013) INTERNAL PCM-CIA CARD W- SOFTWARE FROM YAMAHA.
NEW (JULY 2013) INTERNAL BATTERY.

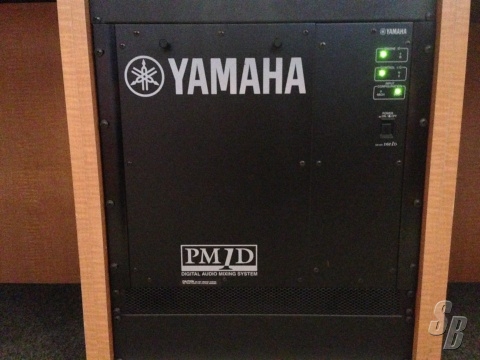

ONE DSP-1D (ENGINE)
ONE DIO FRAME (ACCEPTS MOST YGDAI CARDS. CONSULT YAMAHA SITE)
ONE AO8 CARD FRAME W- 8 LMY4-DA CARDS (32 ANALOG OUTS)
THREE AI8 CARD FRAMES W- 8 LMY2-ML CARDS (64 INPUTS AORB)
TWO AI8 CARD FRAMES W- 6 LMY2-ML & 2- LMY4-MLF CARDS (24 INPUTS AORB, 16 INPUTS ON NEWER 4 CHAN INPUT CARDS.
TOTAL ANALOG INPUTS 104 - PLUS A/B CAPABILITY TO PREVENT NEED FOR SWAPING CABLES BETWEEN BANDS/ACTS.
TWO PW1D POWER SUPPLIES WITH CABLES.
FOUR GOOSE NECK LIGHTS.

JUST A BRIEF SUMMARY OF THE CONSOLE:
EIGHT ONBOARD EFFECTS PROCESSORS.
TWENTY FOUR ON BOARD ASSIGNABLE GEQS.
COMP/GATE/EQ/INPUT DELAY ON EVERY INPUT CHANNEL.
COMP/EQ/ OUTPUT DELAY ON EVERY OUTPUT CHANNEL.
TWELVE DCAS (LAST 4 OF WHICH CAN BE ASSIGNED TO OUTPUTS)
TWELVE MUTE GROUPS WHICH CAN BE USED ON INPUTS OR OUTPUTS.
VAST SCENE MEMORY.
EXCELLENT INPUT AND OUTPUT METERING.


EXTRAS: APPROX 225' SCSI CABLES (POSSIBLE 250' - NEED TO CONFIRM) ARE INCLUDED BUT ONE END (CONNECTOR) WILL HAVE TO BE REMOVED TO EXTRACT FROM CONDUIT. CAN BE RETERMINATED PRIOR TO DELIVERY IF REQUESTED. OTHERWISE CONNECTOR WILL BE LEFT OFF SO CABLES CAN BE PULLED THROUGH CONDUIT IN NEW LOCATION.

MODIFICATIONS: VERSION 2.
FIRMWARE CARD WAS REPLACED IN JULY 2014 PER YAMAHA'S RECOMMENDATION. CL1D BATTERY REPLACED JULY 2014.

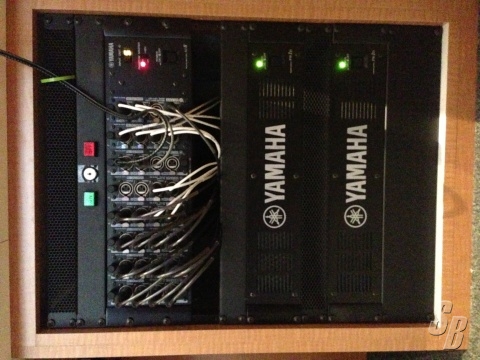

HISTORY: INSTALLED IN HOUSE OF WORSHIP ENVIRONMENT. COVERED AND VERY WELL CARED FOR. I/O RACKS ARE/WERE BEHIND AND ACRYLIC COVER WHICH MAY BE VISIBLE IN ONE OF THE PICTURES.

COMMENTS: CONSOLE IS CURRENTLY IN USE FOR WEEKEND EVENTS. CAN BE MADE AVAILABLE QUICKLY. JUST NEED 3 DAYS TO REMOVE AND PREPARE FOR SHIPPING.
EVERYTHING IS EXTREMELY CLEAN.

THIS UNIT WAS NEVER TOURED
