(12) 7208XY COMPACT LINE ARRAY AND (4) 7218SWX SUBWOOFERS
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 06, 2016 - Viewed 90 times

SOUNDBRIDGE 12 EA. 7208XY AND 4 EA. 7218SWX (YOM: 2007) (S#: TBD) GOOD (7-8)

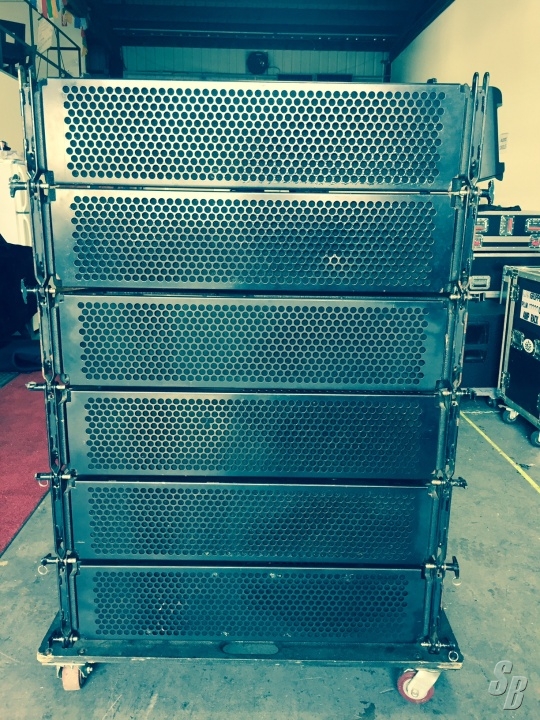

FEATURES: TOPS:

HORIZONTAL DISPERSION: INTERCHANGEABLE 80-DEGREES OR 120-DEGREES

VERTICAL DISPERSION: 10-DEGREES (1 UNIT)

FREQUENCY RESPONSE: 68HZ –TO- 22 KHZ, +/-3DB

MAX SPL: 137.7DB SPL (1 UNIT), 149.7DB (4 UNITS)

LF DRIVE UNIT(S): (2) NEODYMIUM 8” CONE
LF: SENSITIVITY: 106DB 1W/1M
LF POWER HANDLING: 400W (AES), 1600W (PEAK)
LF IMPEDANCE: 8-OHMS

HF DRIVE UNIT(S): (1) NEODYMIUM MF/HF EXO
HF SENSITIVITY: 118DB 1W/1M
HF POWER HANDLING: 250W (AES), 1000W (PEAK)
HF IMPEDANCE: 16-OHMS

CABINET CONSTRUCTION: 18MM 13-PLY BALTIC BIRCH,
HIGH TENSILE UHMW COMPOSITE
CABINET FINISH: TOUR-GRADE DURACOATTM
HARDWARE: XYON™ Z-MAX MODULAR RIGGING SYSTEM
CONNECTIONS: (2) NEUTRIK NL-4 SPEAKON

DIMENSIONS (IMPERIAL): 8.75” X 38.75” X 20.25”
DIMENSIONS (METRIC): 22.2CM X 98.4CM X 51.4CM
WEIGHT: 86LBS (39KGS)

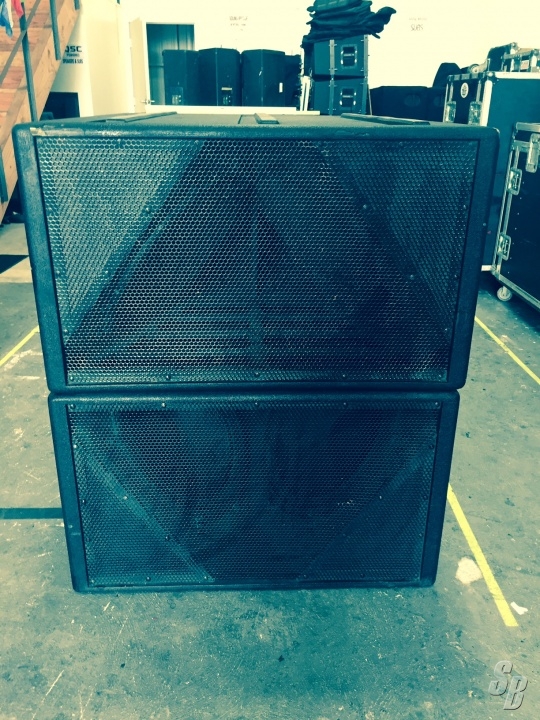

SUBS:

FREQUENCY RESPONSE: 38HZ –TO- 200HZ, +/-3DB

MAX SPL: 144DB SPL (1 UNIT), 156DB (4 UNITS)

LF DRIVE UNIT(S): (2) NEODYMIUM 18” CONE
LF: SENSITIVITY: 105DB 1W/1M
LF POWER HANDLING: 2000W (AES), 8000W (PEAK)
LF IMPEDANCE: 4-OHMS

CABINET CONSTRUCTION: 18MM 13-PLY BALTIC BIRCH,
HIGH TENSILE UHMW COMPOSITE
CABINET FINISH: TOUR-GRADE DURACOATTM
HARDWARE: HEAVY-DUTY CASTERS
CONNECTIONS: (2) NEUTRIK NL-4 SPEAKON

DIMENSIONS (IMPERIAL): 19” X 32” X 41.5”
DIMENSIONS (METRIC): 48.3CM X 81.3CM X 105.4CM
WEIGHT: 167LBS (75.8KGS)

EXTRAS: INCLUDES FLYWARE AND SKATEBOARDS FOR LINE ARRAY AND COVERS FOR LINE ARRAY AND SUBS

MODIFICATIONS: WELL MAINTAINED

HISTORY: TOURING AND EVENT IN THE GREATER SOUTHERN CALIFORNIA AREA.

COMMENTS: END OF SEASON REPLACED ALL MIDS AND HIGHS (ORDERED FROM SOUND-BRIDGE) IN ORDER TO PREP FOR SALE. HAVE SOME REPLACEMENT PARTS INCLUDED.

THIS UNIT WAS TOURED
