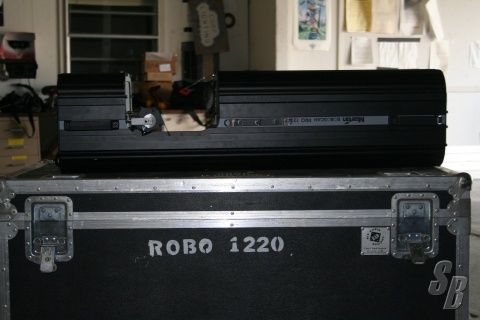

MARTIN ROBOSCAN (YOM: ?) (S#: TBD) AVERAGE FOR AGE (6-7)
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on July 16, 2011 - Viewed 68 times

MARTIN ROBOSCAN (YOM: ?) (S#: TBD) AVERAGE FOR AGE (6-7)

FEATURES: THE ROBOSCAN PRO 1220 FEATURES
LIGHT SOURCE
1200 WATT HMI OR MSR LAMP DEPENDING ON MODEL.
REMOTE ON / OFF VIA CONTROLLER.
MOVEMENT

176 DEGREE PAN IN 0.028 DEGREE STEPS (6,240 POSITIONS).
85 DEGREE TILT IN 0.056 DEGREE STEPS (1,504 POSITIONS).
8 AND 16-BIT TRACKING AVAILABLE VIA DMX 512.
STRAIGHT DIAGONAL MOVEMENTS VIA VECTOR PROTOCOL.
COLOR WHEELS
TWO SEPARATE AND OVERLAPPING COLOR WHEELS EACH WITH 9 DICHROIC COLORS PLUS WHITE (ONLY ONE
WHEEL ON PRO 1220 XR).
DUAL-DIRECTION, CONTINUOUS ROTATION ON BOTH WHEELS.
MICRO-STEPPING RESOLUTION (12,800 STEPS/360°).
COLOR MIXING/SPLITTING.
GOBO WHEELS
4 ROTATING AND INDEXABLE GOBOS, PLUS OPEN.
9 FIXED GOBOS PLUS OPEN, WITH SMOOTH GOBO SCROLLING.
MICRO-STEPPING RESOLUTION (12,800 STEPS/360°).
FIXED AND ROTATING GOBOS CAN BE COMBINED.
D IMMER / SHUTTER
HIGH-SPEED SHUTTER (2 TO 16 HZ) FOR INSTANT BLACK-OUT AND FAST STROBE.
0 TO 100% SMOOTH DIMMING WITH MICRO-STEPPING RESOLUTION.
MOTORIZED FOCUS WITH PRECISION COATED OPTICS.
MOTORIZED IRIS FOR DIFFERENT BEAM DIAMETERS.
EFFECT WHEEL (PRO 1 2 2 0 C M Y R / XR)
3 AND 5 FACET PRISM FOR MULTIPLYING IMAGES.
FROST FILTER FOR SOFT-EDGED IMAGES.
HOT COLOR TEMPERATURE CORRECTION (PRO 1220 XR ONLY).
MECHANICAL CONSTRUCTION
MODULAR DESIGN FOR EASE OF SERVICING AND FLEXIBILITY.
COVER WITH SNAP-LOCK AND SAFETY WIRE PROVIDES INSTANT ACCESS TO SERVICEABLE PARTS.
ADJUSTABLE MOUNTING BRACKET.
FOUR CARRYING HANDLES.
THE MODULAR DESIGN ENABLES FUTURE UPGRADES.
CONTROL, SETTING AND MONITORING
CAN BE CONTROLLED BY DMX 512 OR MARTIN RS-485.
SIMPLE DIGITAL ADDRESSING VIA CONTROL MODULE WITH 4-DIGIT DISPLAY.
SIMPLE SETTING FOR PAN/TILT INVERT AND SWAP.
DIGITAL READ-OUT OF LAMP AND FIXTURE USAGE.
COOLING AND SECURITY .
EFFICIENT FAN COOLING.
FAN SPEED CAN BE REDUCED VIA CONTROLLER WHEN SILENT PERFORMANCE IS REQUIRED.
OVERHEATING PROTECTION.
ACCESS, SAFETY CUT-OFF.
POWER FACTOR CORRECTION FOR LOW CURRENT CONSUMPTION.

EXTRAS: NO MANUAL BUT YOU CAN DOWNLOAD AT WWW.SCHELLSCENIC.COM/.../INTELLIGENT_ROBOSCAN1220_MANUAL.PDF

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS

COMMENTS: SLIGHT JUMP IN STATIC MODE

THIS UNIT WAS NEVER TOURED
