TOMCAT SUNSHADE CONCERT ROOF. TOMCAT USA PRT SUNSHADE ROOF
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on November 21, 2015 - Viewed 135 times

CM LODESTAR, SKJONBERG, TOMCAT SUNSHADE (YOM: 1999) (S#: TBD) GOOD (7-8)

FEATURES: TOMCAT USA PRT PEAKED SUNSHADE CONCERT ROOF. 40' WIDE X 40' DEEP X 34' HIGH WITH FLY BAYS. PURCHASED NEW IN 1999 AND HAS BEEN USED FOR OUTDOOR FESTIVALS AROUND THE MIDWEST. OVER THE YEARS, DAMAGED TRUSS HAS BEEN REPLACED, SO THERE ARE SOME PIECES AS NEW AS 2012. HAD COMPLETE ANSI / PLASA INSPECTION IN MAY OF 2015. ALL TOWERS, BASES AND TRUSS COLOR CODED FOR EASE OF SET UP. ADDITIONAL PICTURES COMING SOON SHOWING MOTORS, MOTOR CONTROLLER, AND MOTOR CABLE.

COMES WITH:

COMPLETE PRT PEAKED SUNSHADE ROOF
SUNSHADE ROOF SKIN
6 CM LODESTAR 1 TON MOTORS (70' CHAIN) WITH ATLANTA RIGGING CASES. (TWO MOTORS PER CASE) MOTORS INSPECTED AND LOAD TESTED.
COMPLETE RIGGING PACKAGE INCLUDED RATCHETS STRAPS, STEEL AND SHACKLES
6 MOTOR CABLES (4 - 150', 2 - 100')
1 SKJONBERG CS800 / 8 MOTOR CONTROLLER WITH 75' FEEDER AND CONTROL PICKLE
GROUND STAKE KIT INCLUDES 8 GROUND STAKES AND STAKE DRIVER

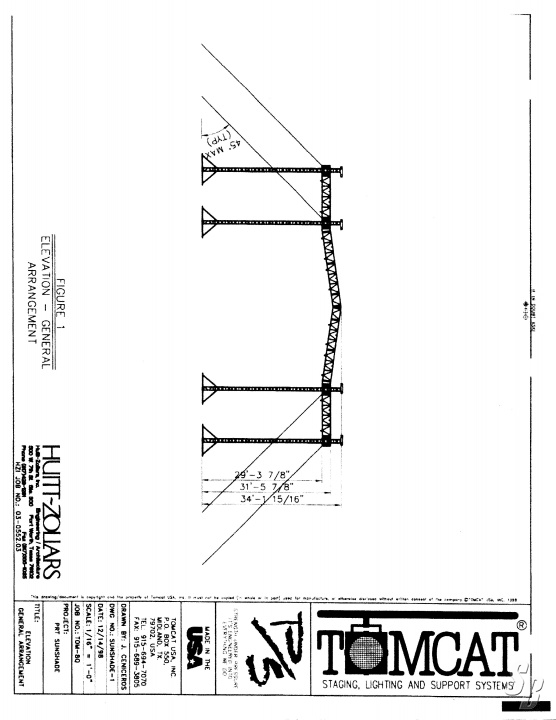

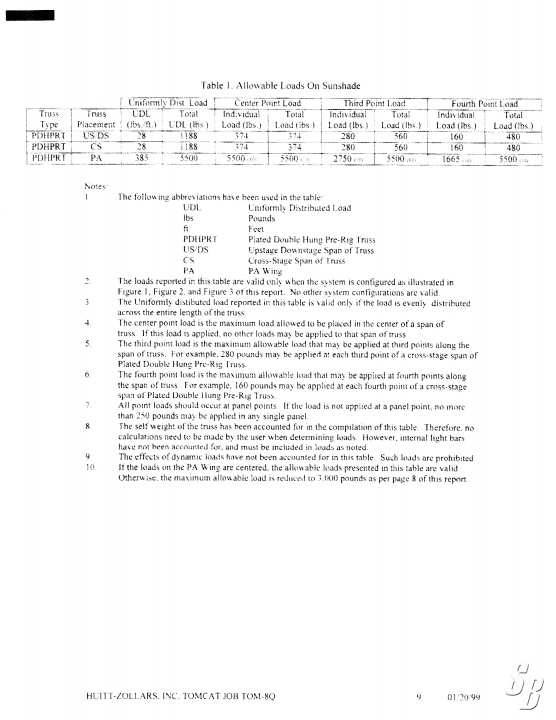

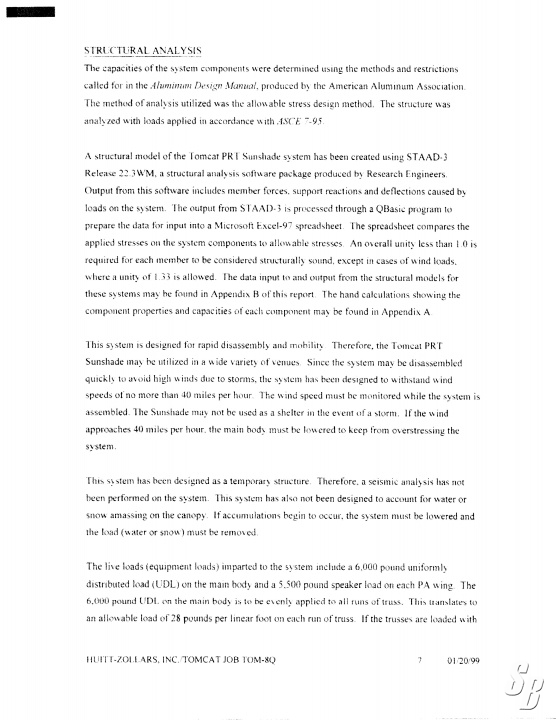

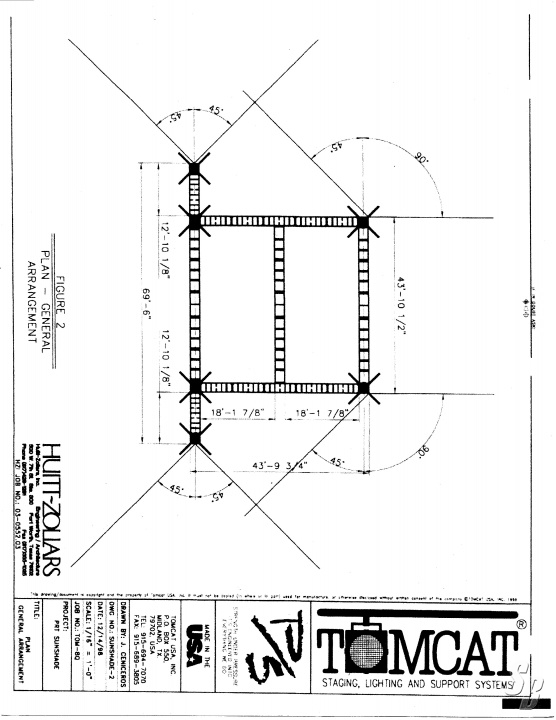

COMPLETE ENGINEERING REPORT

DOES NOT INCLUDE LIGHTS, LIGHT CABLES OR DIMMERS. PAR CANS AND CABLE AVAILABLE FOR PURCHASE IF NEEDED. MOTION LAB LOAD CELLS ALSO AVAILABLE FOR PURCHASE IF DESIRED.

SELLER WILL DELIVER THIS STRUCTURE FOR FREE ANYWHERE IN THE CONTIGUOUS 48 STATES. IN ADDITION, PURCHASE INCLUDES ONE DAY OF TRAINING TO PROPERLY DEPLOY THE STRUCTURE.

TO QUALIFY FOR FREE ONE DAY TRAINING, PURCHASER MUST:

1. SUPPLY 12 STAGE HANDS TO SET UP AND TAKE DOWN ROOF STRUCTURE.
2. HAVE A FLAT AREA 100' WIDE X 80' DEEP.
3. SUPPLY 60 AMP THREE PHASE POWER.
4. IF ON GRASS, GRAVEL OR DIRT, ALL UTILITIES MUST BE CLEARLY MARKED SO THAT GROUND STAKES CAN BE DRILLED.
5. ON HARD SURFACES SUCH AS PARKING LOTS, 12 - 3400 POUND CEMENT BARRIERS MUST BE SUPPLIES AND A FORKLIFT TO MOVE BARRIERS.
6. ALL SURFACES MUST BE ABLE TO SUSTAIN THE WEIGHT OF A SEMI AND THE ROOF STRUCTURE.
7. SET UP AREA MUST BE ABLE TO BE ACCESSED BY A SEMI PULLING A 53' TRAILER.
8. ALLOW AT LEAST A TWO WEEK WINDOW FOR SHIPPING AND TRAINING.
9. TRAINING MUST IMMEDIATELY FOLLOW DELIVERY.
10. NOTIFY DMM SYSTEMS WITHIN 48 HOURS OF PURCHASE TO ARRANGE DELIVERY AND TRAINING.

FOR MANUFACTURER SPECIFICATIONS VISIT TOMCATGLOBAL.COM


EXTRAS: COMPLETE ENGINEERING REPORT. MOTORS RECENTLY SERVICED.

MODIFICATIONS: TRUSS INSPECTED IN MAY, 2015.

HISTORY: OUTDOOR FESTIVALS.

COMMENTS: TYPICAL WEAR FOR A ROOF STRUCTURE. PER ANSI AND PLASA SUGGESTION, ALL LOADING AND WIND CALCULATIONS SHOULD BE 80% OF WHAT THE ENGINEERING REPORT RECOMMENDS.

THIS UNIT WAS NEVER TOURED
