ID # 94121    CURRENT CATEGORY - STAGE/ROOF/TRUSSING

For Sale: APPLIED 40X40 ROOF STRUCTURE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Viewed 752 times

APPLIED 40X40 ROOF STRUCTURE

APPLIED ELECTRONICS 40X40(YOM: 2007) (S#: TBD) GOOD (7-8)

FEATURES: SEE BELOW

EXTRAS:SEE BELOW

MODIFICATIONS:SEE BELOW

HISTORY:SEE BELOW

COMMENTS:

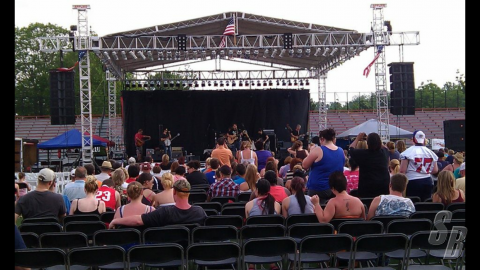

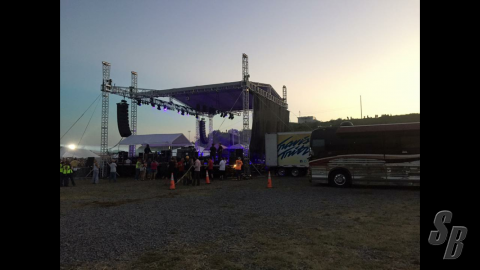

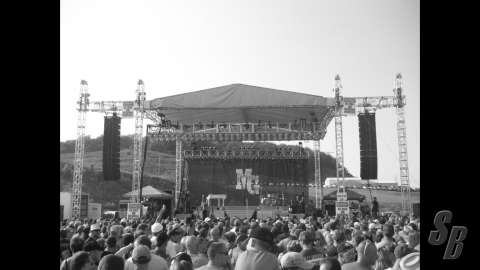

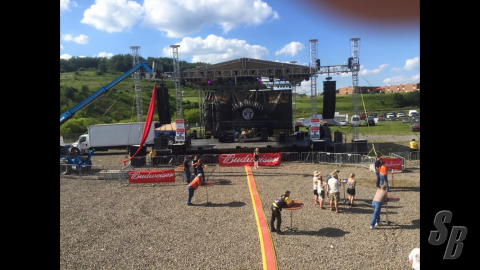

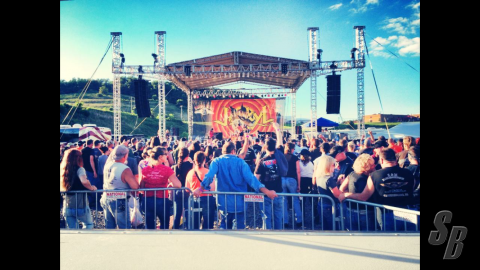

APPLIED 40' X 40' ROOF STRUCTURE. 15"X23.5" PERIMETER TRUSS, 48" PEAK, (6)SIX 16"X16"X35' TOWERS, ADDITIONAL 10' SOUND BAY TRUSSES TO FLY PA, TAN VINYL ROOF SKIN, RECENT ENGINEERING REPORT AND STAMP INCLUDED.

EXTRAS:
BUNGEES AND RATCHETS TO SECURE SKIN, EXTRA SKIN TO MAKE ROOF 40'X30' INCLUDED, BOLT ON TOWER LIFTING ARM, EXTRA LADDER TRUSSES, BACKDROP PULLEY SYSTEM, 5' CANTILEVERING TRUSS FOR FLYING SMALLER PA SYSTEMS, VINYL PEAK VALANCE FOR FRONT AND REAR.

CONFIGURATIONS:
40'X40' WITH 6-TOWERS 35' TRIM.
MINIMIZE TO 40'X30 WITH 4-TOWERS 25' TRIM

6- STAGEMAKER SM10 1-TON 3-PHASE HOISTS WITH 60 FOOT OF LIFT

1- APPLIED 8-WAY MOTOR CONTROLLER WITH SOCA OUTPUTS

2- 125' MOTOR SOCA CABLES

2- 100' MOTOR SOCA CABLES

2-50' MOTOR SOCA CABLES

1- 3-PHASE MOTOR DISTRO FEEDER CABLE WITH CAMS

MOTOR CASES

ROAD CASES FOR CABLING, RIGGING, BUNGEES, STRAPS, AND STAKES

8- 6' SPANSETS

8- RATCHET STRAPS

12- 5/8 SHACKLES

8- GROUND STAKES

1- ROAD CASE WITH LIFT OUT TRAY FOR TOOLS THAT INCLUDES ALL BOLTS AND TOWER PINS

WE ALSO HAVE TWO 25' 16"X16" TOWERS AND BASES WE WOULD THROW IN FOR AN ADDITIONAL AMOUNT EACH IF YOU WOULD EVER HAVE THE NEED TO BUILD TWO 4 POST ROOFS.

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 94121
Listing Type:
Standard
Model: 40X40
Manufacturer: APPLIED ELECTRONICS
Condition: GOOD (7-8)
Shipping Info: 0.00 lbs., N/A
Seller's Location: WV, USA
Updated: December 06, 2016
M.S.R.P.: $220,000.00
Offered at: $100,000.00
