ID # 107531    CURRENT CATEGORY - SPEAKERS

For Sale: MEYER UM-1P ULTRA STAGE MONITOR
[PRICED PER UNIT - 40 AVAILABLE AT TIME OF LISTING]
Viewed 538 times

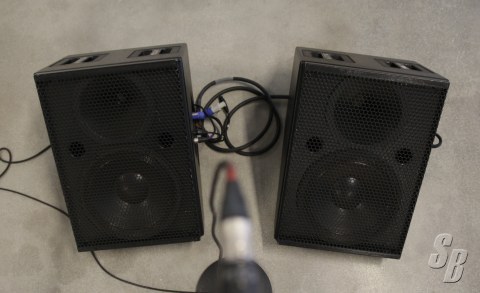

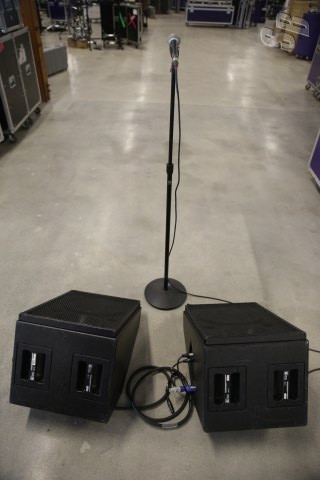

MEYER UM-1P ULTRA STAGE MONITOR

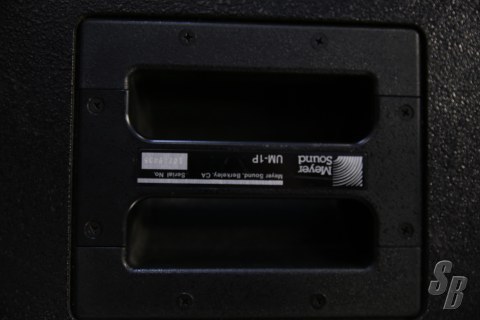

MEYER UM-1P ULTRA STAGE MONITOR (YOM:????) (SN:TBD)

THESE COME FROM A REHEARSAL STUDIO AND HAVE BEEN WELL MAINTAINED AND NEVER TOURED.  , FOB CA

SELLER IS OPEN TO LEGITAMATE OFFERS

MANUFACTURER DATA SHEET - MEYER SOUND - UM-1P



MANUFACTURER SPECS/PRODUCT DETAIL:

THIS COMPACT, SELF-POWERED ENCLOSURE HOUSES A 12″ CONE DRIVER AND A 3″ DIAPHRAGM COMPRESSION DRIVER ALONG WITH PHASE-CORRECTED CONTROL ELECTRONICS AND AMPLIFICATION. A DEDICATED, PROPRIETARY CLASS AB/BRIDGED AMPLIFIER (700 WATTS TOTAL) WITH COMPLEMENTARY MOSFET OUTPUT STAGES POWERS THE HIGH- AND LOW-FREQUENCY DRIVERS. TRUPOWER LIMITING PREVENTS DRIVER OVER-EXCURSION AND REGULATES VOICE COIL TEMPERATURE, PROTECTING THE DRIVERS AND ASSURING HIGH SOUND PRESSURE LEVELS WITH MINIMAL POWER COMPRESSION. THE INTELLIGENT AC POWER SUPPLY PROVIDES AUTOMATIC VOLTAGE SELECTION, EMI FILTERING, HIGH VOLTAGE TRANSIENT SUPPRESSION AND SOFT START AT POWER-UP.

BY PRODUCING FLAT AMPLITUDE AND PHASE RESPONSES, FULL-RANGE BANDWIDTH AND EXCEPTIONAL IMPULSE RESPONSE, THE UM-1P FAR EXCEEDS THE CAPABILITIES OF CONVENTIONAL STAGE MONITORS. IT PROVIDES 133 DB SPL PEAK AT 1 METER WITH EXCELLENT INTELLIGIBILITY AND WITHOUT DISTORTION OR COLORATION.

THE UM-P SERIES HORNS EXHIBIT CONSTANT-Q: THE BEAMWIDTH REMAINS CONSISTENT ACROSS THE HORN’S OPERATING FREQUENCY RANGE IN BOTH THE VERTICAL AND HORIZONTAL PLANES. THE UM-1P’S NARROW, SYMMETRICAL COVERAGE (45° HORIZONTAL X 45° VERTICAL) AFFORDS PINPOINT AIMING WITH MINIMAL INTERACTION BETWEEN ADJACENT UNITS. FREQUENCY RESPONSE IS UNIFORM ACROSS THE SPECIFIED BEAMWIDTH, WITH MINIMAL SIDE LOBES.

WITH THE ADDITION OF AN OPTIONAL MODULE, THE UM-1P MAY BE INTEGRATED INTO MEYER SOUND’S RMS REMOTE MONITORING SYSTEM, A WINDOWS-BASED COMPUTER APPLICATION FOR MONITORING THE FULL RANGE OF AMPLIFIER AND LIMITER OPERATING PARAMETERS.

Additional Details
ID#: 107531
Listing Type:
Standard
Model: UM1P
Manufacturer: MEYER SOUND
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: CA, USA
Updated: April 28, 2018
M.S.R.P.: $0.00
Offered at: Contact Us
