ID # 75755    CURRENT CATEGORY - SNAKE SYSTEMS

CUSTOM 20-CHANNEL DRIVE SNAKE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on October 02, 2015 - Viewed 33 times

Click on thumbnail to enlarge

CUSTOM 20-CHANNEL DRIVE SNAKE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]



WHIRLWIND CUSTOM (YOM: 2001) (S#: NONE) GOOD (7-8)

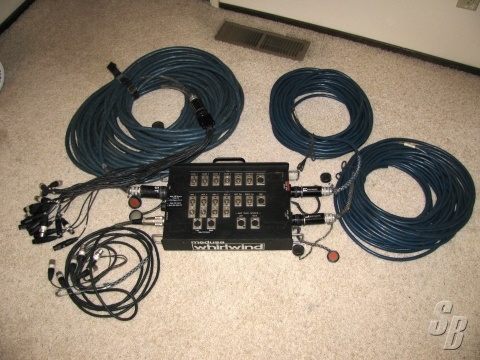

FEATURES: CUSTOM WHIRLWIND 20-CHANNEL DRIVE SNAKE
150' TRUNK WITH W2 CONNECTORS EACH END
W2 FAN FOR FOH END
BREAKOUT BOX FOR STAGE END
TWO 100' 9-CHANNEL "STACK" CABLES WITH W1 CONNECTORS AT BOX END, BLUNT END AT "STACK".
MONITOR FAN INTERCONNECTS TO VARIOUS CHANNELS (SEE BELOW)

EXTRAS: NONE

MODIFICATIONS: MODIFIED SEVERAL TIMES FROM WHIRLWIND CONFIGURATION TO MEET CHANGES IN MY SYSTEM. MODIFICATIONS ARE EXTREMELY EASY INSIDE THE BREAKOUT BOX.

HISTORY: MAIN FOH DRIVE. ORIGINAL OWNER. CUSTOM BUILT BY WHIRLWIND. ORIGINALLY HARD WIRED INTO MY AMP RACKS WITH HIGH-MID-LOW-SUB AND FILL DRIVE SIGNALS PLUS OTHER SIGNALS. EVENTUALLY THE SAME DRIVE LINES WERE REPURPOSED FOR SUB AND 3 ZONES TO A MEYER LINE ARRAY.

COMMENTS:

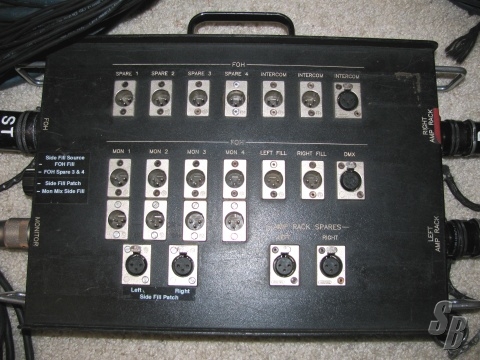

6 LINES FROM FOH ARE ROUTED DIRECTLY TO EACH OF THE "STACK" CABLES. 8 LINES FROM FOH TERMINATE AT XLR CONNECTORS ON THE BREAKOUT BOX. ONE LINE IS DEDICATED TO INTERCOM, ANOTHER TO DMX.

6 LINES FROM THE MONITOR CONSOLE ALSO ENTER THE BOX. THESE PICK UP FOH SPARE 1-3, INTERCOM AND PROVIDE "SIDE FILL" DRIVE.

A SWITCH ON THE BOX SELECTS THE SIGNAL THAT FEEDS THE "SIDE FILL" STACK DRIVE.

MORE DETAILS CAN BE PROVIDED UPON REQUEST. JUST REMEMBER THAT IT'S VERY EASY TO RECONFIGURE THE INTERCONNECTS TO MEET YOUR NEEDS.

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 75755
Listing Type:
Standard
Model: CUSTOM
Manufacturer: WHIRLWIND
Condition: GOOD (7-8)
Shipping Info: 75.00 lbs., 24X24X20
Seller's Location: CA, USA
Updated: October 02, 2015
M.S.R.P.: $0.00
Asking Price: SOLD
