ID # 101041    CURRENT CATEGORY - MICROPHONES/WIRELESS


For Sale: LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on September 23, 2017 - Viewed 89 times

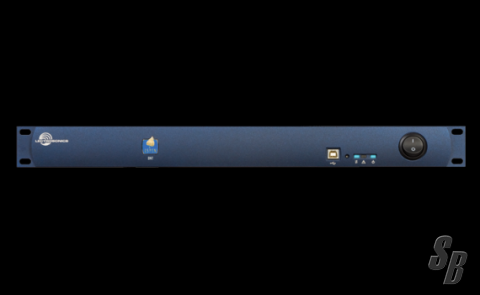

LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR

LECTROSONICS ASPEN DIGITAL MATRIX AUDIO PROCESSOR - DANTE

PART# SPNDNT

DESCRIPTION:

  • CONNECTS DANTE™ NETWORKED AUDIO WITH ASPEN PROCESSORS
  • UP TO 32 INPUTS AND 32 OUTPUTS FROM THE DANTE NETWORK OPERATE AS NATIVE INPUTS AND OUTPUTS IN THE
    ASPEN DIGITAL MATRIX
  • LOW LATENCY, TIGHTLY SYNCHRONIZED TRANSPORT OF UNCOMPRESSED AUDIO OVER IP NETWORKS USING
    OFF THE SHELF SWITCHES
  • SIMPLIFIED CONFIGURATION MANAGEMENT INCLUDES EASY TO USE DANTE FEATURES LIKE AUTOMATIC DEVICE DISCOVERY
    AND PLUG AND PLAY NETWORKING
  • GIGABIT ETHERNET TRANSPORT
  • AVB SUPPORT
  • REDUNDANCY VIA SECONDARY NETWORK

IN ESSENCE, THE SPNDNT IS A FULL FUNCTION DSP MIXER AND PROCESSOR LIKE OTHER ASPEN MODELS EXCEPT THAT INSTEAD OF ANALOG I/O PORTS, IT USES DIGITAL NETWORK DANTE PORTS. THE PROCESSOR COMBINES DANTE NETWORKED DIGITAL AUDIO WITH THE ASPEN DIGITAL MATRIX TO EXPAND SIGNAL ROUTING OPTIONS. THE ON-BOARD AUDINATE® BROOKLYN II MODULE FUNCTIONS AS A NATIVE DANTE DEVICE USING STANDARD ETHERNET OR AVB COMPLIANT SWITCHES.

THE PROCESSOR ALSO HANDLES THE CLOCK SYNCHRONIZATION FOR THE ASPEN EQUIPMENT AND THE DANTE NETWORK. IF THE PROCESSOR IS THE DANTE MASTER, IT GENERATES THE CLOCK SIGNAL FOR THE NETWORK AND THE ASPEN RACK. IF THE PROCESSOR IS A DANTE SLAVE, IT PICKS UP THE NETWORK CLOCK AND PASSES IT ON TO THE ASPEN SYSTEM BELOW IT. MULTIPLE DANTE EQUIPPED DEVICES WILL AUTOMATICALLY DISCOVER ONE ANOTHER AND CONFIGURE THE MASTER/SLAVE RELATIONSHIP.

REDUNDANCY, WHICH IS REQUIRED IN SOME APPLICATIONS, IS ACCOMPLISHED BY CONNECTING TO A SECONDARY NETWORK THAT DUPLICATES REAL-TIME AUDIO TRAFFIC. IF THE PRIMARY NETWORK FAILS FOR ANY REASON, THE SECONDARY NETWORK’S AUDIO CONTINUES WITHOUT LOSING EVEN A SINGLE SAMPLE.

ACCESSORIES INCLUDED:

  • 1 - POWER CORD (PART #21499)
  • 1 - 25-PIN CONNECTOR (PART #21558)
  • 1 - USB CABLE (PART #21713)
  • 1 - TELEPHONE CABLE (PART #21753)
  • 1 - PATCH CABLE (PART #21802)
  • 1 - ADJUSTMENT TOOL (PART #35679)
  • 1 - SOFTWARE CD (PART #ASPENNETWIN)
  • 1 - MANUAL

BRAND NEW WITH MANUFACTURER WARRANTY

WWW.SOUNDBROKER.COM  LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 101041
Listing Type:
Standard
Model: SPNDNT
Manufacturer: LECTROSONICS
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: NM, USA
Updated: September 23, 2017
M.S.R.P.: $0.00
Offered at: Contact Us
CONSUMER ALERT

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.

Wireless microphone device that operate in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies.

Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.

To operate wireless microphone systems at power greater than 50mW, you must qualify as a Part 74 user and be licensed.

NOTE – This has not changed at all and has been in effect for over 20 years. If you qualify and wish to apply for a license go to:

http://www.fcc.gov/Forms/Form601/601.html

Look under BROADCAST AUXILIARY – Land Mobile (Part 74) You will need forms FCC 601 Schedule d and Schedule H

From the FCC docket 10-16 – Page 7 – (boldface has been added by us)

10. Under Section 74.832, only certain entities may be issued licenses authorizing the use of low power auxiliary stations. In particular, these entities fall within the following categories: (1) licensees of AM, FM, TV, or International broadcast stations or low power TV stations; (2) broadcast network entities; (3) certain cable television system operators; (4) motion picture and television program producers as defined in the rules; and (5) certain entities with specified interests in Broadband Radio Service (BRS) and Educational Broadcast Service (EBS) licenses, i.e., BRS licensees (formerly licensees and conditional licensees of stations in the Multipoint Distribution Service and Multi-channel Multipoint Distribution Service), or entities that hold an executed lease agreement with a BRS licensee or conditional licensee or entities that hold an executed lease agreement with an Educational Broadcast Service (formerly Instructional Television Fixed Service) licensee or permittee.25 Cable television operations, motion picture and television program producers may be authorized to operate low power auxiliary stations only in the bands allowed for TV broadcasting.26 All classes of broadcast auxiliary stations provided for in Subpart H, except wireless video assist devices (WVADs), may be operated on a short term basis under the authority conveyed by a Part 73 license or a broadcast auxiliary license without prior authorization, subject to conditions.
