ID # 69585    CURRENT CATEGORY - LIGHTING INTELLIGENT

For Sale: ROBE 575 XT WASH PAIR
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Viewed 1265 times

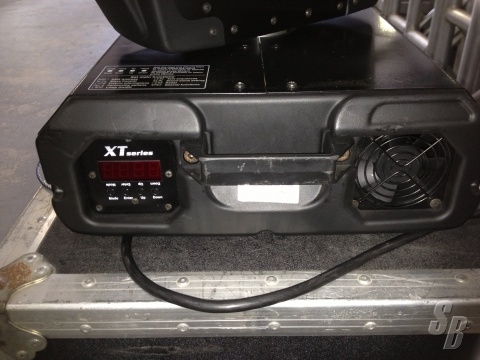

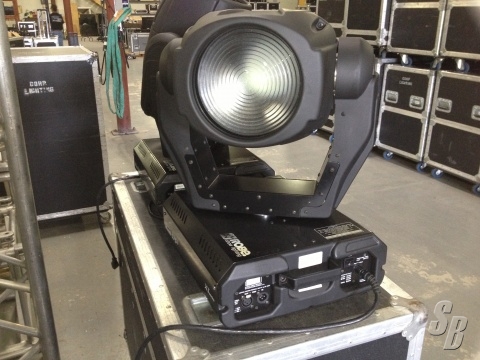

ROBE 575 XT WASH PAIR


ROBE 575 XT (YOM: ?) (S#: TBD) GOOD (7-8)

AVAILABLE: PRICED IN PAIRS INCLUDES FREE ROAD CASE.

FEATURES:
THIS FIXTURE IS ONE OF ROBE'S MOST POPULAR PRODUCTS. THE MAIN FEATURES ARE THE DYNAMIC CMY COLOUR MIXING SYSTEM – WITH 6 SEPARATE COLOURS, AND EFFECTS LIKE THE ROTATABLE BEAM SHAPER, FROST FILTER, REMOTE 8-22 DEGREE ZOOM FUNCTION AND MOTORISED DIMMER SHUTTER. THE WASH 575XT WILL WITHSTAND THE RIGOURS OF TOURING ENVIRONMENTS. APPLICATIONS INCLUDE THEATRE PRODUCTIONS, CONCERT TOURING, CORPORATE AND INDUSTRIAL EVENTS, FESTIVALS AND TELEVISION LIGHTING, AND THE WASH 575 IS EQUALLY AT HOME IN FIXED INSTALLATIONS AS IT IS IN RENTAL STOCK – WHERE IT CONTINUES TO BE AN INDUSTRY STANDARD MOVING LIGHT FIXTURE.

SOURCE:
LAMP: COMPACT HIGH-PRESSURE METAL HALIDE LAMP
BASE: GX-9.5
APPROVED MODEL: PHILIPS MSR 575W/2
CONTROL: AUTOMATIC AND REMOTE ON/OFF
BALLAST: MAGNETIC
OPTICAL SYSTEM
MOTORIZED MULTI-STEP ZOOM BETWEEN 7° AND 28° BEAM ANGLES
FRESNEL LENS OF DIAMETER 200 MM

ELECTRICAL SPECIFICATION
WIRING OPTIONS - EU-MODEL: 208/230/240V AC, 50/60HZ,
WIRING OPTIONS - US MODEL: 100/120/208/230/240V AC,50/60HZ
POWER CONSUMPTION: 900 VA AT 230V/50HZ

MECHANICAL SPECIFICATION
HEIGHT: 583 MM (23.0") - HEAD IN HORIZONTAL POSITION
WIDTH: 449 MM (17.7")
DEPTH: 467 MM (18.4")
WEIGHT - EU MODEL: 32 KG (70.5 LBS), US MODEL: 36 KG (79.4 LBS)

THERMAL
MAXIMUM AMBIENT TEMPERATURE (TA): 40°C (104°F)
MAXIMUM SURFACE TEMPERATURE: 80°C (176°F)
CONTROL AND PROGRAMMING
PROTOCOL: USITT DMX-512
CONTROL CHANNELS: 16

BILT-IN DEMO SEQUENCES
DISPLAY: 4-DIGIT LED DISPLAY
PAN/TILT RESOLUTION: 8- OR 16-BIT

MASTER/SLAVE OPERATING

CONTROLLABLE SPEED OF FANS
MOVEMENT CONTROL: TRACKING AND VECTOR
BUIT-IN ANALYZER FOR EASY FAULT FINDING

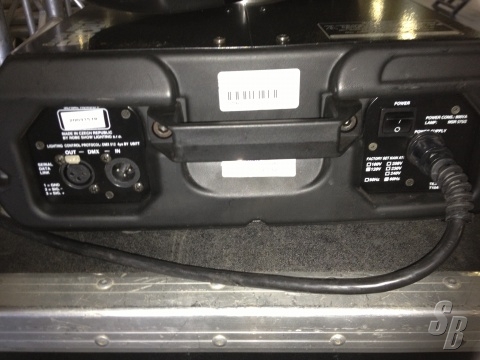

DATA IN/OUT: LOCKING 3-PIN XLR

ELECTROMECHANICAL EFFECTS

CMY COLOURS MIXING SYSTEM
COLOUR WHEEL: 4 DICHROIC FILTERS + OPEN, 3200K AND 5600K CORRECTION FILTERS,UV FILTER
EFFECT WHEEL: BEAM SHAPER AND FROST FILTER
DIMMER/SHUTTER: FULL RANGE DIMMING AND VARIABLE STROBO EFFECT
IRIS: MOTORIZED IRIS FOR DIFFERENT BEAM DIAMETERS
FOCUS: MOTORIZED FOCUS
PAN: 530°
TILT: 280°
MAXIMUM PAN-MOVEMENT 530° IN 2.65S
MAXIMUM TILT-MOVEMENT 280° IN 1.68S

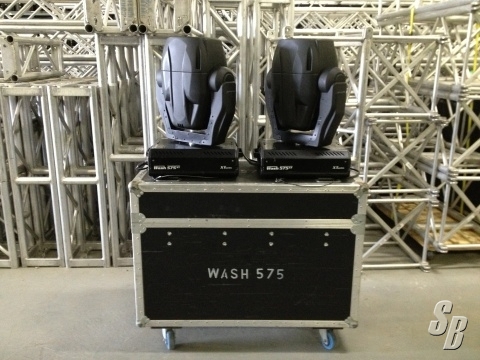

EXTRAS: MOVERS ARE SOLD AS PAIR ONLY.COMES WITH ROAD CASE

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED

WWW.SOUNDBROKER.COM CELEBRATING OUR 20TH ANNIVERSARY LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 69585
Listing Type:
Standard
Model: 575 XT
Manufacturer: ROBE
Condition: GOOD (7-8)
Shipping Info: 0.00 lbs.,
Seller's Location: LA, USA
Updated: October 20, 2017
M.S.R.P.: $0.00
Offered at: $1,175.00
