ID # 101851    CURRENT CATEGORY - CONSOLE

DIGICO S21
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 11, 2019 - Viewed 657 times

Click on thumbnail to enlarge

DIGICO S21
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]

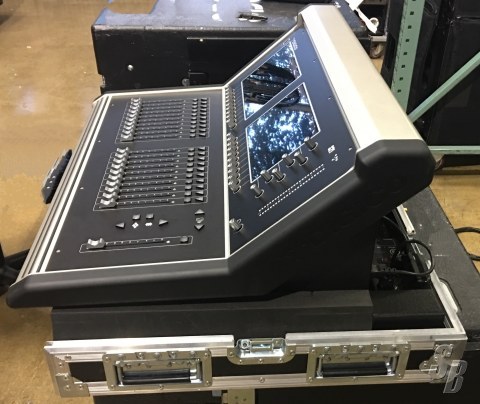

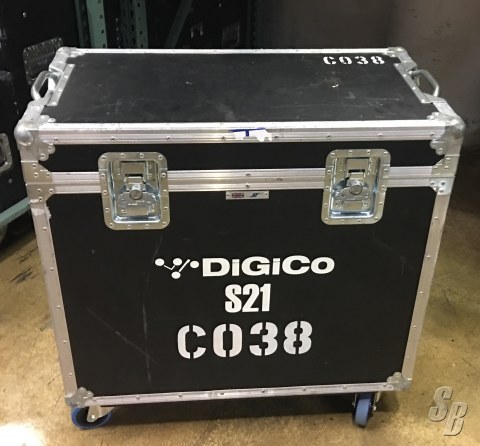

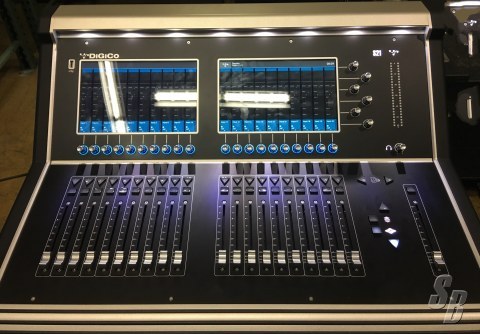

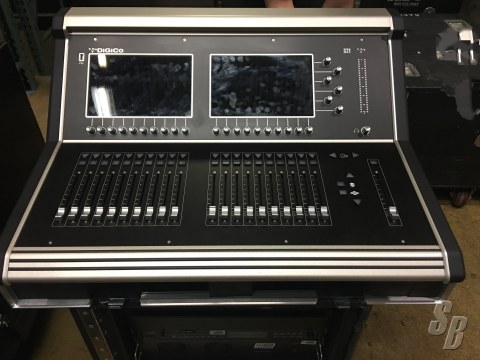

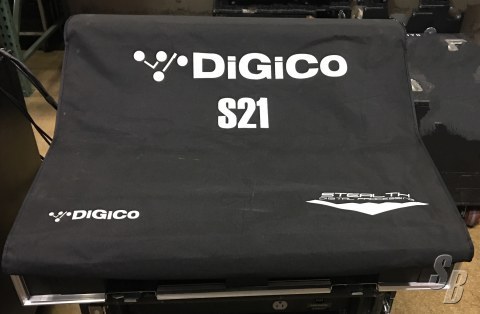

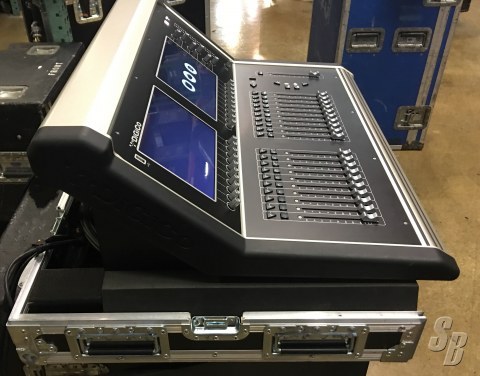

DIGICO S21 CONSOLE WITH ROAD CASE (YOM:????) (SN:TBD)

COMMENTS: I AM SELLING THE CONSOLE WITHOUT THE DMI CARDS. NOT SURE IF I HAVE THE BLANK COVERS FOR DMI SLOTS. USED ONLY FOR CORPORATE SHOWS

DESCRIPTOIN:

STEALTH DIGITAL PROCESSINGTM - SUPER FPGA PROCESSOR 40-BIT FLOATING POINT PROCESSOR

96KHZ SAMPLING RATE STANDARD OR 48KHZ

48 INPUT CHANNELS: 48 FLEXI* CHANNELSTM - *(MONO OR STEREO INPUTS)

46 OUTPUT BUSSES: 16 FLEXI BUSSESTM - MONO OR STEREO (UP TO 32 XLR'S) AUX/GROUP OUTPUTS STEREO L/R MASTER BUSS

PLUS 10 INPUT X 8 OUTPUT MATRIX

2 MONO/STEREO SOLO BUSSES

ALL INPUTS CHANNELS & OUTPUT BUSSES INCLUDE:

DELAY, *DIGI-TUBE, VARIABLE HI & LO PASS, 4 BAND PEQ , PRE-EQ OR POST DYNAMICS INSERT POINT DYNAMICS 1 (COMPRESSOR OR *MULTI-BAND COMPRESSOR), DYNAMICS 2 (GATE W/ FILTERED KEY FROM ANY POINT, DUCKER OR COMPRESSOR W/ FILTERED SIDE CHAIN)

*4 DIGI-TUBES AVAILABLE ON ANY INPUT OR OUTPUT

*4 MULTI-BAND COMPRESSORS AVAILABLE ON ANY INPUT OR OUTPUT 10 CONTROL GROUPS/VCA


16 X 32 BAND INSERTABLE GRAPHIC EQ'S
8 FX ENGINES (REVERBS, DELAY AND ENHANCER)

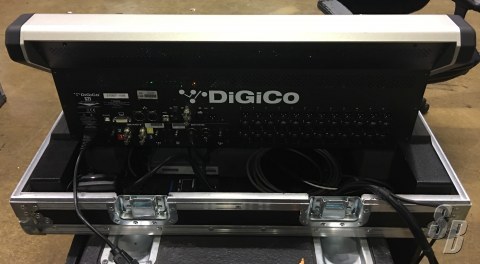

LOCAL I/O:

2 X DMI DIGICO MULTI-CHANNEL INTERFACE SLOTS (UP TO 64 I/O PER DMI SLOT)

24 MIC/LINE INPUTS (SD SERIES PRE-AMP)
12 ANALOG OUTPUTS
1 AES INPUT (2 CHANNELS) W/SRC

1 AES OUTPUT (2 CHANNELS)
INTEGRATED 48 CHANNEL RECORDING INTERFACE I/O - USB2.0 TYPE B CONNECTION 1 GPI AND 1 GPO (TRS)
DVI OUTPUT (EXTERNAL VIDEO MONITOR)
WORD CLOCK I/O BNC
2 ETHERNET CONNECTIONS FOR NETWORKING

2 X 10" MULTI-TOUCH SCREENS
21 MOVING FADERS (TOUCH SENSITIVE)
TOUCH SENSITIVE ROTARIES WITH INTEGRATED SWITCH & HTLTM (HIDDEN TILL LIT TECHNOLOGY) 1/4" & 3.5MM MINI HEADPHONE OUTPUT CONNECTORS
BANK LAYOUT:

8 CUSTOMIZABLE BANKS OF 10 FADERS (ALL CUSTOMIZABLE)

SNAPSHOT AUTOMATION

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 101851
Listing Type:
Standard
Model: S21
Manufacturer: DIGICO
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: FL, USA
Updated: February 11, 2019
M.S.R.P.: $9,500.00
Asking Price: SOLD
