ID # 111891    CURRENT CATEGORY - CONSOLE/DIGITAL

For Sale: DIGICO D1 LIVE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Viewed 124 times

DIGICO D1 LIVE

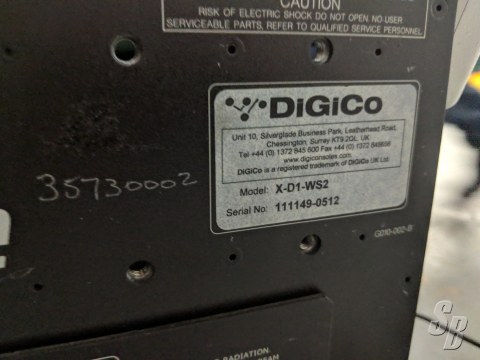

DIGICO D1 LIVE (YOM: ?) (S#: 111149-0512) SUPERB (8-9) FEATURES:

D1 LIVE : OVERVIEW

AS WITH THE D5, THE D1 LIVE PROVIDES SIMULTANEOUS PROCESSING OF 64 CHANNELS BUT IN AN EXTREMELY COMPACT FRAME SIZE AND CAN BE EXPANDED UP TO 160 CHANNELS, IN ANY COMBINATION OF MONO/STEREO WITH FULL ACCESS TO 224 INPUTS AND 224 OUTPUTS.

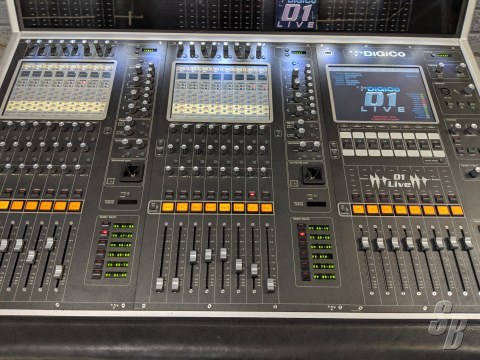

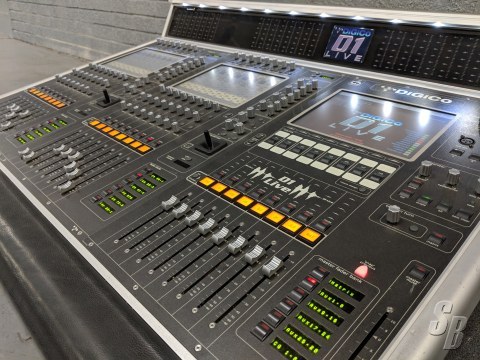

WORKSURFACE

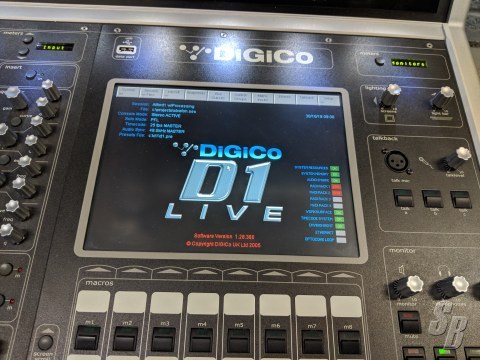

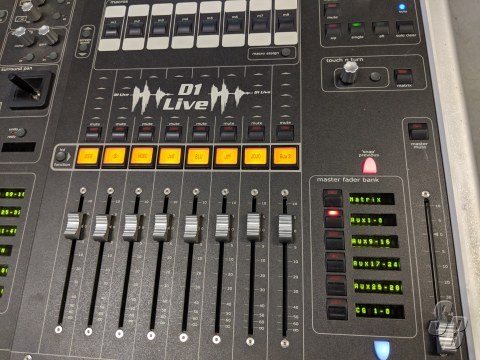

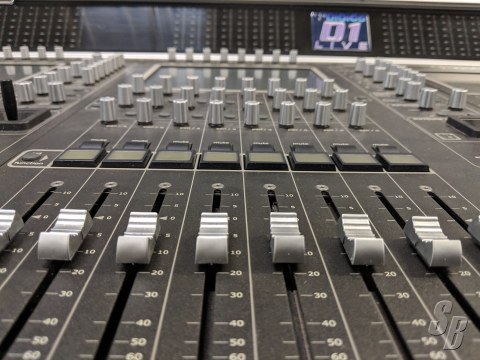

THE WORKSUFACE CONSISTS OF 25 FADERS, TWO INPUT SECTIONS EACH WITH IT'S OWN TOUCH SCREEN, 8 FADERS AND SIX USER DEFINABLE BANKS. THE MASTER SECTION, ALSO HAS EIGHT FADERS PLUS MASTER, A TOUCH SCREEN, UP TO 12 USER DEFINABLE BANKS AND EIGHT USER DEFINABLE MACRO BUTTONS. AS WITH IT'S BIGGER BROTHER THE D5, THE D1 ALSO HAS IT'S ENGINE INTEGRATED WITHIN THE WORKSURFACE.

ENGINE

THE D1, WITH V4 SOFTWARE, SHARES THE SAME FACILITIES AS THE D5 WITH UP TO 160 CHANNELS WITH DELAY, HI AND LOW PASS FILTERS, 4 FULLY PARAMETRIC EQS AND DYNAMICS WITH SIDE CHAIN FILTERING. , A FULL DIGITAL EFFECTS SYSTEM, 32 IPC'S AND 24 VCA STYLE CONTROL GROUPS. THE 40 OUTPUT BUSSES CAN BE USED FOR UP TO 36 MONO/STEREO AUXES OR UP TO 36 MONO/STEREO/LCR (S)/5.1 SURROUND BUSSES, EACH WITH A LIMITER AND INSERT POINT. IT ALSO PROVIDES A USER CONFIGURABLE 38X8 MATRIX, ALL WITH INSERT POINTS.

I/O

THE D1 COMES AS STANDARD WITH 4 MADI PORTS ALLOWING CONNECTION TO ANY OF THE AVAILABLE I/O RACKS FROM DIGICO. THUS GIVING ACCESS UP TO 224 INPUTS AND 224 OUTPUTS.

MOST POPULAR SYSTEMS:

THE D1 LIVE 48MINI-DR (MINI-DUAL RACK) SYSTEM PACKAGE
AKES THE D1 LIVE FULLY INTO THE INTEGRATED DIGITAL DOMAIN, THE INCLUSION OF BOTH A LOCAL MINI-DIGIRACK AND STAGE-END DIGIRACKS CREATING A TOTALLY DIGITAL SIGNAL PATH BETWEEN STAGE AND CONSOLE. THE LATEST IMPLEMENTATION OF THE DIGICO HIGH PERFORMANCE MADI BOARD IN THE D1 LIVE 48DR SUPPORTS CABLE RUNS OF UP TO 100 METRES. THE D1 LIVE 48MINI-DR INCLUDES BOTH THE EFFECTS SYSTEM AND INSERTABLE PROCESSING CHANNELS FOR SUPERB FUNCTIONALITY AS A TRUE DUAL-PURPOSE (FRONT OF HOUSE/MONITOR) CONSOLE.

THE D1 LIVE 56 MINI-FM SYSTEM PACKAGE
IS A FULLY ENABLED D1 LIVE SYSTEM WITH TWO D1 LIVE WORKSURFACES, A LOCAL MINI-DIGIRACK AND A FULL STAGE END DIGIRACK, FOUR 100 METRE DRUMS OF COAXIAL MADI CABLE AND 56 PHYSICAL INPUTS ON STAGE. THIS COMPLETE, SELF CONTAINED SYSTEM DOES AWAY WITH THE NEED FOR A MULTICORE, SPLITTERS, LINE DRIVERS, DYNAMICS PROCESSORS AND AN ENTIRE EFFECTS RACK. IT OFFERS SIMILAR FUNCTIONALITY TO THE D5 LIVE 56EX BUT IN A MORE COMPACT WORKSURFACE FRAME.



EXTRAS:

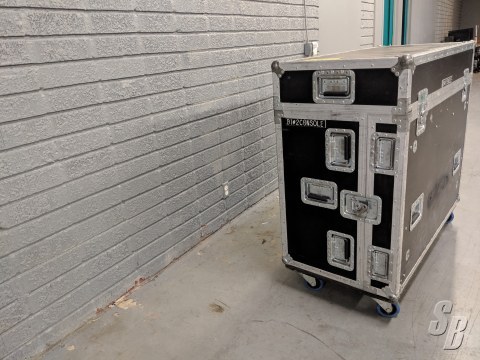

THIS UNIT INCLUDES A ROAD CASE WITH DOGHOUSE, AS PICTURED.

MODIFICATIONS:

NONE

HISTORY:

CORPORATE EVENTS

COMMENTS:

NONE

THIS UNIT WAS NEVER TOURED

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 111891
Listing Type:
Motivated
Model: D1 LIVE
Manufacturer: DIGICO
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: MO, USA
Updated: November 10, 2018
M.S.R.P.: $0.00
Offered at: $6,175.00
