AVID SC48
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on November 07, 2018 - Viewed 69 times

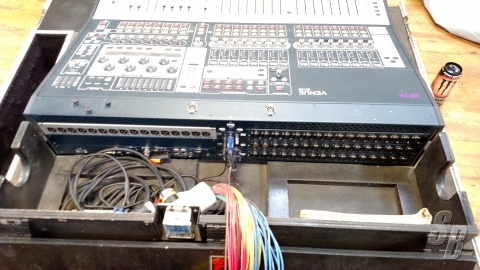

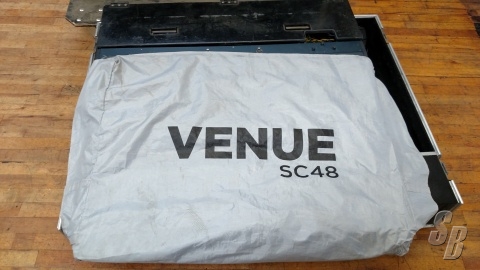

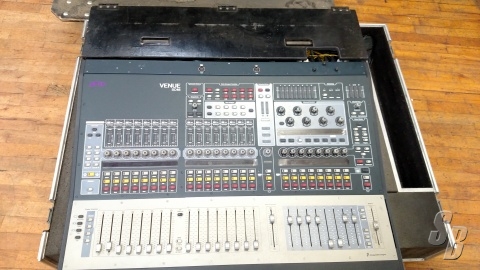

AVID SC48 (YOM: 2012) (S#: BDAUU12600025R) SUPERB (7-8)

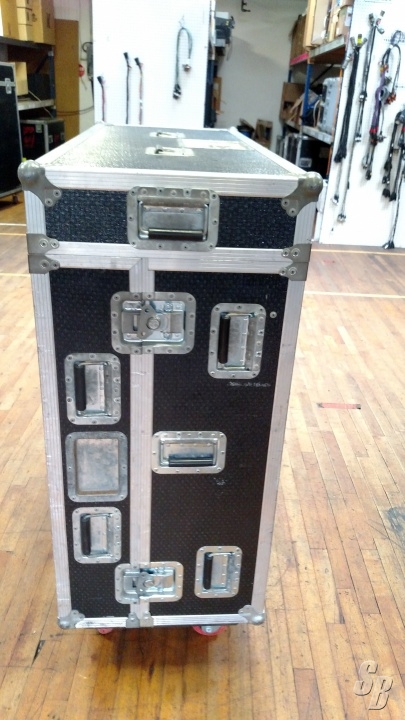

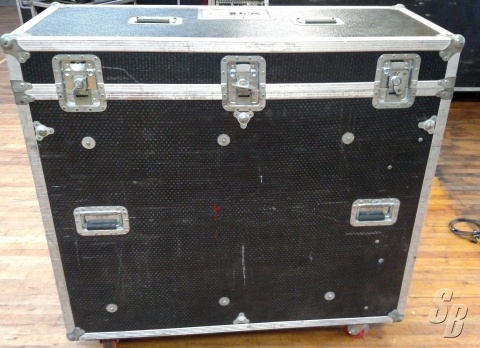

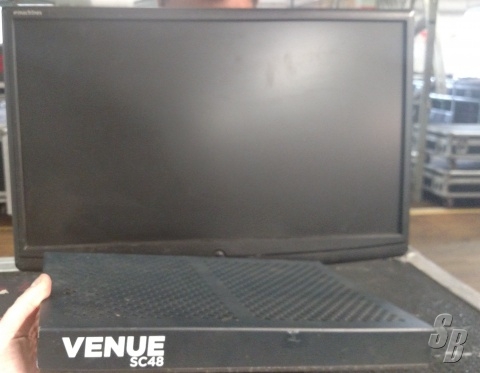

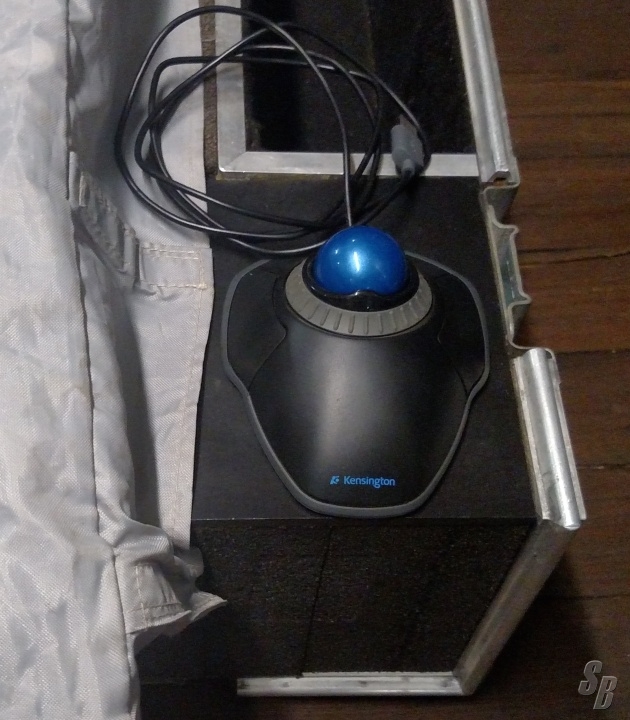

COMES WITH: MONITOR DISPLAY, SPEAKER MONITOR STAND AND TRACK BALL. TRACK BALL MOUNT BUILT INTO CASE

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: LIVE SOUND PRODUCTION CO.

COMMENTS: NO PROBLEMS

THIS UNIT WAS TOURED

FEATURES:
VENUE SC48 HARDWARE SPECIFICATIONS
MAXIMUM HEIGHT (FRONT)
MAXIMUM HEIGHT (REAR) 3.9 INCHES (100 MM)
7.3 INCHES (186 MM)
MAXIMUM WIDTH 38.95 INCHES (989 MM) WITH ENDCAPS
MAXIMUM DEPTH 28.15 INCHES (715 MM)
WEIGHT 125 LBS (56.7 KG)
POWER REQUIREMENTS 100–240 V, 50–60 HZ, 200 W
USB PORTS (5) USB 2.0
IEEE-1394 PORT FIREWIRE (FOR PRO TOOLS ONLY)
GPI PORT DB9 FEMALE
FOOTSWITCH CONNECTORS (2) 1/4-INCH TRS
MIDI IN/OUT 5-PIN DIN FEMALE
WORD CLOCK IN/OUT BNC FEMALE
VGA PORT DB-15 MINI-FEMALE (1024 X 768 RESOLUTION, MIRRORED DISPLAY MODE)
DVI PORT DVI FEMALE (1024 X 768 RESOLUTION, MIRRORED DISPLAY MODE)
ECX ETHERNET CONTROL RJ-45 (FOR ECX REMOTE CONTROL)
CONSOLE LIGHT CONNECTORS (2) XLR3-F


SC48 GENERAL AUDIO SPECIFICATIONS:
INTERNAL SAMPLE FREQUENCY 48 KHZ
EXTERNAL SAMPLE FREQUENCY 48 KHZ +/-10 PPM (WORD CLOCK INPUT)
PROCESSING DELAY LESS THAN 2.3 MS (48 CHANNELS, STAGE INPUT THROUGH L-R BUS TO STAGE OUTPUT)
INTERNAL PROCESSING UP TO 48-BIT, FIXED POINT (288 DB INTERNAL DYNAMIC RANGE)
FREQUENCY RESPONSE +/-0.2 DB (22 HZ – 20 KHZ BW, RELATIVE TO 1 KHZ)
DYNAMIC RANGE 108 DB TYP
CROSSTALK -100 DB TYP (ADJACENT STAGE INPUTS TO L-R BUS, @ 1KHZ)
RESIDUAL OUTPUT NOISE -90 DBU TYP (20 HZ – 20 KHZ BW)

EXTRAS: NO EXTRAS.
