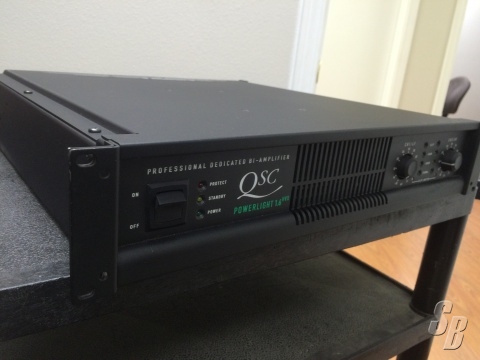

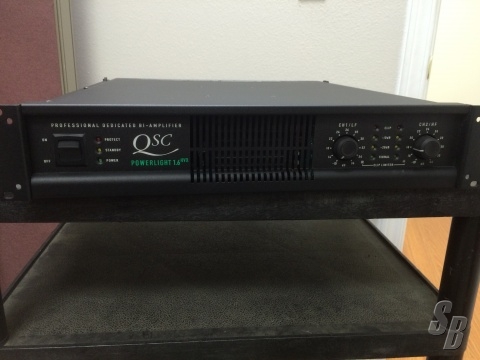

QSC POWERLIGHT 1.6 HVX BI-AMPLIFIER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 12, 2021 - Viewed 302 times

QSC POWERLIGHT 1.6 HVX BI-AMP (YOM: ?) (S#: TBD) SUPERB (8-9)
THE POWERLIGHT 1.6 HVX IS AN ADVANCED DUAL POWER PROFESSIONAL AUDIO AMPLIFIER FEATURING UNCOMPROMISED AUDIO PERFORMANCE.

FEATURES:

DESIGNED SPECIFICALLY FOR USE WITH BI-AMPLIFIED SPEAKER SYSTEMS, POWER AND PERFORMANCE OF EACH CHANNEL IS TAILORED FOR ITS INTENDED LOAD. A NEW HIGH FREQUENCY POWER SUPPLY, UTILIZING QSC'S POWERWAVE SWITCHING TECHNOLOGY, HAS BEEN
COMBINED WITH THE RUGGED AUDIO AMPLIFICATION CIRCUITS OF TRADITIONAL QSC AMPLIFIERS TO PRODUCE AN AMPLIFIER WITH INCREDIBLE AUDIO PERFORMANCE,  RELIABILITY, AND THERMAL CAPACITY.

A SPECIAL HIGH VOLTAGE OUTPUT CIRCUIT PROVIDES MAXIMUM POWER AT 16, 8, 4 OHM LOADS. THE POWERLIGHT 1.6 HVX IS RATED AT
725 WATTS/CHANNEL INTO 8 OHMS AND 1100 WATTS/ CHANNEL INTO 4 OHMS FOR THE LOW FREQUENCY CHANNEL, MAKING IT IDEAL FOR POWERING STAGE MONITORS AND ANY HIGH POWER, BI-AMPLIFIED SPEAKER SYSTEMS.

POWERWAVE SWITCHING TECHNOLOGY
PROVIDES INCREASED POWER SUPPLY
REGULATION TO MAINTAIN EXCELLENT LOW
FREQUENCY RESPONSE TO 20 HZ.
OUTSTANDING AUDIO PERFORMANCE AND
RELIABILITY, NETWORKABILITY, AND LIGHT
WEIGHT MAKE THIS AMPLIFIER IDEAL FOR ALL
CRITICAL SOUND SYSTEM APPLICATIONS.

OUTPUT POWER (CH 1 LOW FREQUENCY)
8 OHMS, 20 HZ TO 20 KHZ, 0.1% THD, 725 WATTS
4 OHMS, 20 HZ TO 20 KHZ, 0.1% THD, 1100 WATTS
2 OHMS, NOT RATED
OUTPUT POWER (CH 2 HIGH FREQUENCY)
8 OHMS, 20 HZ TO 20 KHZ,0.1% THD, 300 WATTS
4 OHMS, 20 HZ TO 20 KHZ,0.1% THD, 450 WATTS
2 OHMS, NOT RATED
DISTORTION (SMPTE-IM): LESS THAN 0.05%
DISTORTION (TYPICAL): LESS THAN 0.01% THD
4Ω TO 8Ω:
20HZ-20KHZ, 10 DB BELOW RATED POWER
1.0 KHZ AND BELOW, FULL RATED POWER
FREQUENCY RESPONSE:
20 HZ TO 20 KHZ, 0.15 DB
8 HZ TO 100 KHZ, +0/-3 DB
DAMPING FACTOR:
GREATER THAN 350
DYNAMIC HEADROOM: 1.9 DB AT 4 OHMS
NOISE: 108 DB BELOW RATED OUTPUT (20 HZ TO 20 KHZ)
SENSITIVITY: CH 1: 1.12 VRMS; CH 2: 1.0 VRMS,
FOR RATED POWER (8 OHMS)
CONTROLS:
FRONT: AC SWITCH, CH 1 AND CH 2 GAIN KNOBS, CH 1 AND CH 2
CLIP LIMITER SWITCHES
BACK: REMOTE A.C. POWER, CONTROL TERMINAL STRIP
PRELIMINARY
VOLTAGE GAIN: CH 1: 63 (36 DB); CH 2: 50 (34 DB)
INPUT IMPEDANCE: 10K UNBALANCED, 20K BALANCED
INDICATORS:
PROT: RED LED CLIP: RED LED, 1 PER CH.
STANDBY: YELLOW LED LEVEL -10: YELLOW LED, 1 PER CH.
PWR-ON: GREEN LED LEVEL -20: YELLOW LED, 1 PER CH.
SIG-PRESENT: GREEN LED, 1 PER CH.

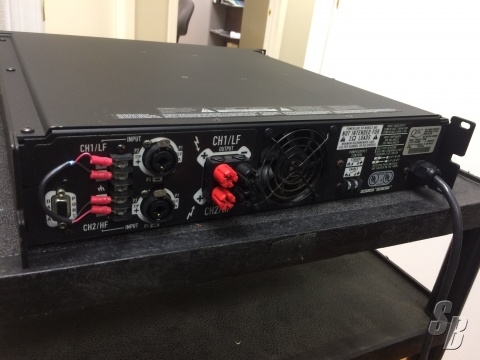

CONNECTORS: (EACH CHANNEL)
INPUT: BARRIER STRIP AND NEUTRIK COMBO XLR
AND 1/4" INPUT
SPEAKERS: TOUCH PROOF BINDING POSTS
DATA PORT: HD15 FEMALE
COOLING: TWO VARIABLE SPEED FANS, REAR-TO-FRONT AIR FLOW.
AMPLIFIER PROTECTION:
FULL SHORT CIRCUIT, OPEN CIRCUIT, THERMAL, ULTRASONIC, AND RF
PROTECTION. STABLE INTO REACTIVE OR MISMATCHED LOADS.
LOAD PROTECTION:
ON/OFF MUTING. DC-FAULT POWER SUPPLY SHUT DOWN.
OUTPUT CIRCUIT TYPE:
CH 1:COMPLEMENTARY LINEAR OUTPUTS. 2-STEP HIGH EFFICIENCY
CIRCUIT
CH 2: COMPLEMENTARY LINEAR OUTPUTS. CLASS AB CIRCUIT
DIMENSIONS:
19.0" (48.3 CM) RACK MOUNTING
3.5" (8.9 CM) TALL (2 SPACES)
17.9" (45.5 CM) DEEP (REAR SUPPORT EARS)
WEIGHT: 18 IBS (8.2 KG) NET, 24 IBS (10.6 KG) SHIPPING

EXTRAS: NO MANUAL. MANUAL CAN BE OBTAINED AT

WWW.QSCAUDIO.COM/PRODUCTS/AMPS/POWERLIGHT/POWERLIGHT.HTM


MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTING

COMMENTS: NONE


THIS UNIT WAS NEVER TOURED
