SYSTEM INCLUDES:
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 31, 2007 - Viewed 180 times

SYSTEM INCLUDES:

(6) AE 12 2X18 SUBS. IN GOOD WORKING CONDITION NO CASTER BOARDS OR COVERS. DRIVERS RECENTLY REPLACED.

(1) P-2V AE2 PROCESSOR

(4) AE 2 COMPACT NEARFILL SPEAKERS (BLACK) IN GOOD WORKING
CONDITION.

(1) P-12PV AE12 SUB PROCESSOR

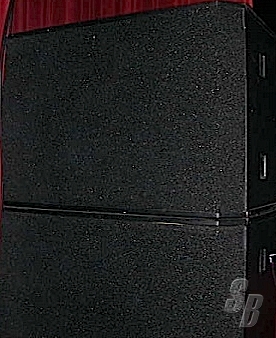

APOGEE AE12
THE AE-12 CONCERT SUBWOOFER AND ITS COMPANION P-12 PROCESSOR COMBINE TO PRODUCE EXTREMELY HIGH LEVEL, LOW FREQUENCY OUTPUT FROM AN EASILY TRANSPORTED ENCLOSURE. WITH EXTREMELY DEEP AND ACCURATE RESPONSE (30 HZ TO 105 HZ), THE AE-12 ADDS DRAMATIC IMPACT TO MUSICAL PASSAGES WITHOUT "MUDDYING" OR COLORING THE UPPER FREQUENCIES.

THE ELECTRONICALLY-COUPLED DESIGN INTEGRATES THE ELECTRONIC PARAMETERS OF THE PROCESSOR WITH BOTH THE ELECTRO-MECHANICAL CHARACTERISTICS OF THE DRIVERS AND THE ACOUSTICAL PROPERTIES OF THE ENCLOSURE, ACHIEVING OPTIMUM PERFORMANCE FROM THE TOTAL SYSTEM.

DESIGNED FOR CONCERT SOUND REINFORCEMENT, CORPORATE/INDUSTRIAL THEATER AND LARGE CLUBS OR DISCOS, THE AE-12 PERECTLY COMPLEMENTS THE APOGEE 3X3 TRI-AMPLIFIED CONCERT LOUDSPEAKER SYSTEM, AS WELL AS AE-5 LOUDSPEAKER ARRAYS.

FLYING OR STACKING MULTIPLE UNITS PRODUCES EVEN GREATER LOW FREQUENCY OUTPUT FOR OUTDOOR CONCERTS AND OTHER LARGE SCALE EVENTS.

SUITABLE FOR FIXED INSTALLATION OR PORTABLE USE, THE AE-12 INCLUDES SIX HANDLES FOR EASE OF HANDLING, BUILT-IN RIGGING POINTS FOR FLUING AND DIMENSIONS DESIGNED FOR EFFICIENT "TRUCK-PACK".

CONTAINING TWO 18" ADVANCED HIGH POWER, LONG-EXCURSION CONE DRIVERS COOLED WITH FERROFLUID, THE OPTIMALLLLY VENTED ENCLOSURE IS RUGGEDLY CONSTRUCTED OF 100% FINLAND BIRCH PLY, FINISHED WITH HIGH STRENGTH EPOXY PAINT AND PROTECTED WITH A PLASTISOL DAMPED STEEL GRILL. INTEGRATING PERFECTLY WITH THE APOGEE FAMILY OF LOUDSPEAKERS, THE ADDITION OF AN AE-12 SIGNIFICANTLY INCREASES SYSTEM HEADROOM AND EXTENDS THE LOW FREQUENCY RESPONSE FOR EXPANDED MUSICAL ACCURACY AND IMPACT.


ENCLOSURE TYPE ------- RECTANGULAR, OPTIMALLY VENTED BASS
FORMAT --------------- ELECTRONICALLY-COUPLED
DRIVER COMPLEMENT----- DUAL APOGEE DD1803, 18" CONE
NOMINAL IMPEDANCE, 8 OHMS EACH DRIVER
FREQUENCY RESPONSE---- 30HZ - 105 HZ +/-3 DB, 1 METER ON AXIS
SOUND PRESSURE LEVEL-- 128DB CONTINUOUS, 134 DB PEAK @ 1 METER
MAX POWER HANDLING --- 1200 WATTS CONTINUOUS, 4800 WATTS PEAK (600/2400 EACH DRIVER)
INPUT CONNECTORS ----- NEUTRIK NL4MP SPEAKON
RIGGING HARDWARE ----- 12 GUAGE STEEL NUTPLATES ON BOTH ENDS BACKED WITH STEEL REINFORCING BRACKETS
-- ACCEPTS 3/8-16 THREADED FASTENERS.
DIMENSIONS ----------- 44.75"W X 30"H X 22.5" D
WEIGHT --------------- 204 LBS.

APOGEE P-12
THE ADVANCED TECHNOLOGY OF THE APOGEE P-12 PROCESSOR ENABLES THE AE12 SUBWOOFER TO PERFORM WITH SUPERIOR LINEARITY, LOWER DISTORTION AND WIDER RESPONSE THAN IS POSSIBLE WITH CONVENTIONAL LOUDSPEAKER DESIGNS.

THE P-12 PROCESSOR INCLUDES SERVO-LOOP PROTECTION CIRCUITS, TIME AND FREQUENCY DOMAIN CORRECTION AND A PRECISION FRONT END UTILIZING FACTORY MATCHED COMPONENTS FOR HIGH COMMON MODE REJECTION.

THE P-12 FEATURES FRONT PANEL FUNCTION SWITCHES (WHICH RETAIN THEIR SETTINGS THROUGH POWER-UP/POWER-DOWN CYCLES), TURN-ON/TURN-OFF MUTING AND APOGEE'S UNIQUE PAR ADJUSTABLE PROTECTION CIRCUITRY. PAR (POSITIVE AMPLIFIER RETURN) SENSES THE OUTPUT OF THE AMPLIFIER AND ENGAGES LOW DISTORTION LIMITERS TO AID IN PROTECTING THE DRIVERS UNDER ABUSIVE CONDITIONS. BY SELECTING A "USER PRESET" MODE, THE PORTECTION CIRCUITS CAN BE ADJUSTED TO MATCH A WIDE RANGE OF POWER AMPLIFIERS.

INPUTS ---------- 50K OHM ACTIVE BALANCED, AC COUPLED
OUTPUTS---------- 100 OHM ACTIVE BALANCED, AC COUPLED
HUM AND NOISE---- BETTER THAN -90DBV
DYNAMIC RANGE --- 110DB
LINE VOLTAGE ---- SWITCHABLE -- 100,125,220,240 VAC, 50/60 HZ
DIMENSIONS ------ 19"W X 1.75"H (1 EIU RACK SPACE)X 11.75"D
WEIGHT ---------- 12 LBS
