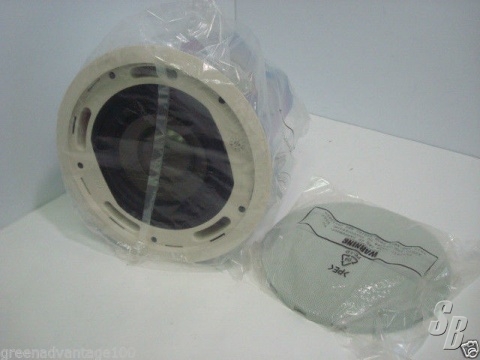

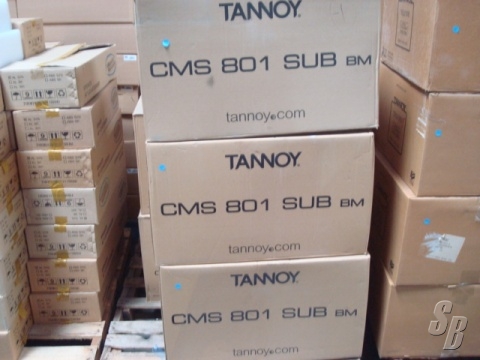

BRAND NEW TANNOY CMS 801 SUB BM COMPACT 8-INCH BLIND MOUNT CEILING SUBWOOFER WITH INTEGRAL BACK CAN
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on June 05, 2014 - Viewed 95 times

7 EA. TANNOY 805680 (YOM: ?) (S#: TBD) UNOPENED BOX - NEVER USED (10)

FEATURES: CEILING SUBWOOFERS
A RANGE OF IN CEILING SUBWOOFERS PROVIDING OPTIONS DESIGNED TO DELIVER LOW FREQUENCY REINFORCEMENT TO ANY TANNOY CEILING SPEAKER INSTALLATION. WITH BOTH ACTIVE AND PASSIVE UNITS AVAILABLE, THESE DESIGNS ARE OPTIMISED FOR TIGHT AND CONTROLLED BASS EXTENSION, DELIVERED WITH AUTHORITY AND AGILITY, IN A WIDE RANGE OF APPLICATIONS.

THE TANNOY CMS801 CEILING SUBWOOFER IS A COMPACT UNIT THAT IS SPECIFICALLY DESIGNED TO COMPLEMENT THE FULL RANGE CMS CEILING MONITOR SYSTEMS; DELIVERING LOW FREQUENCY EXTENSION INTO APPLICATIONS THAT REQUIRE A COMBINATION OF PREMIUM SONIC QUALITY AND OUTPUT LEVEL FOR MUSIC AND SPEECH REINFORCEMENT.

THE 200MM (8.00") DRIVER, WITH LONG THROW MULTI FIBRE PAPER PULP CONE, AND A 2ND ORDER 160HZ PASSIVE CROSSOVER ARE MOUNTED IN A VENTED, INJECTION MOULDED, PAINTABLE FRONT BAFFLE MANUFACTURED FROM UV/WEATHER RESISTANT UL94V-0 ABS MATERIAL.

TWO MODELS VARIANTS ARE AVAILABLE: CMS801 SUB BM (BLIND MOUNT) AND CMS801 SUB PI (PRE-INSTALL) - A STEEL BACK CAN IS AVAILABLE AS AN OPTIONAL ACCESSORY FOR THE PI VERSION.

SPRING LOADED SELF-ALIGNING CLAMPS MAKE FOR QUICK AND EASY INSTALLATION, WHILE BOTH THE BM AND PI MODELS ARE ALSO SUPPLIED WITH TWO TILE SUPPORT RAILS AND ONE C-RING INCLUDED IN THE PACKAGE. A PLASTER (MUD) RING IS AVAILABLE AS AN OPTIONAL ACCESSORY.

EXTRAS: CMS801 SUB BM (BLIND MOUNT) - SUPPLIED WITH AN INTEGRAL BACK CAN.

CMS801 SUB BM : THIS MODEL IS EQUIPPED WITH A LOW INSERTION LOSS 60W LINE TRANSFORMER MOUNTED WITHIN THE BACK CAN. THIS IS EASILY CONFIGURABLE TO THE FOLLOWING SETTINGS VIA FRONT BAFFLE MOUNTED ROTARY TAPPING SWITCH:
70V SYSTEMS: 60W / 30W / 15W / 7.5W / OFF & LOW IMPEDANCE OPERATION
100V SYSTEMS: 60W / 30W / 15W / OFF & LOW IMPEDANCE OPERATION


MODIFICATIONS: THESE ARE BRAND NEW IN BOX.... THEY COME IN PAIRS OF 2.

HISTORY: USED IN RESIDENTIAL OR COMMERCIAL. BRAND NEW IN BOX

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
