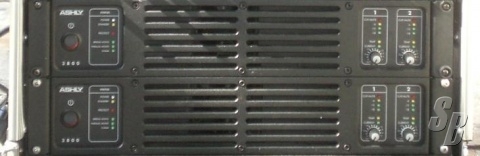

ASHLY PE SERIES 3800 POWER AMPLIFIER

ASHLY PE3800 (YOM: ?) (S#: Q05 395-0152 & Q05 395-0153) LIKE NEW (9-10)

PRICED EACH

FEATURES: POWER RATING


STEREO @ 8 OHMS: 1100W PER CH.
STEREO @ 4 OHMS: 1900W PER CH.
STEREO @ 2 OHMS: 1500W PER CH.
MONO BRIDGE @ 8 OHMS: 3800W PER CH.
MONO BRIDGE @ 4 OHMS: 3000W PER CH.
PARALLEL MONO @ 2 OHMS: 3800W PER CH.

DAMPING FACTOR


>400, 8-OHM LOAD, <1kHz

Input Sensitivity


1.5V

Input Impedance


20 kOhms, Balanced

Gain


Selectable 26dB, 32dB or 1.5V sens.

Frequency Response


20 Hz - 20 kHz, 0.15dB

Signal-to-Noise Ratio


>112DB, 20HZ - 20KHZ UNWEIGHTED

TOTAL HARMONIC DISTORTION (THD)


<0.01% (8-OHM LOAD, 10DB BELOW RATED POWER, 20HZ - 10KHZ

INPUT CONNECTIONS


2 X 3-PIN XLR FEMALE/1/4" TRS COMBO
1 X CH.1,2 EUROBLOCK IN
1 X REMOTE LEVEL/STANDBY EUROBLOCK
1 X 3-PIN XLR MALE LOOP-THROUGH
1 X CAT-5 LINK/DATA PORT

OUTPUT CONNECTORS


2 X SPEAKON

CONTROLS FRONT PANEL


1 POWER SWITCH
2 X GAIN CONTROL KNOBS

CONTROLS (REAR)


1 X GROUND SWITCH
2 X CH.1,2 3-POSITION HPF SWITCHES
1 X 3-POSITION CLIP LIMITER SWITCH
1 X 3-POSITION GAIN SWITCH
1 X BRIDGE/STEREO/PARALLEL MODE SWITCH

INDICATORS


1 X BLUE POWER LED
1 X YELLOW STANDBY LED
1 X RED PROTECT LED
2 X GREEN BRIDGE/PARALLEL MONO MODE LED'S
1 X GREEN COMM. LED
2 X RED CLIP/MUTE LED'S
2 X YELLOW -6 LEVEL LED'S
4 X GREEN -12/-18 LEVEL LED'S
2 X YELLOW TEMP. LED'S
2 X GREEN CURRENT LED'S

COOLING


TEMPERATURE-DEPENDENT SPEED-CONTROLLED AXIAL FAN, FRONT TO BACK AIR FLOW

POWER CONSUMPTION


1220W (1/8 POWER PINK NOISE @ 4 OHM)
TYPICAL CURRENT:
IDLE: 2.8A
@8 OHMS: 14.6A
@4 OHMS: 22.6A

DIMENSIONS


19 X 3.5 X 15.5" (483 X 88.9 X 394MM)

WEIGHT


24 LB (10.9 KG)

SPECIALTIES


LIGHTWEIGHT POWER AMPLIFIER WITH SWITCHING POWER SUPPLY
NETWORK REMOTE CONTROL SOFTWARE WITH STANDARD ETHERNET CONNECTIVITY
OPTIONAL DSP CARDS

EXTRAS: FACTORY BOX...

MODIFICATIONS: HAS DSP 1 CARD FOR PROGRAMMING VIA ETHERNET PORTS..

HISTORY: LIGHT USE.

COMMENTS: LIKE NEW...

THIS UNIT WAS NEVER TOURED
